Features

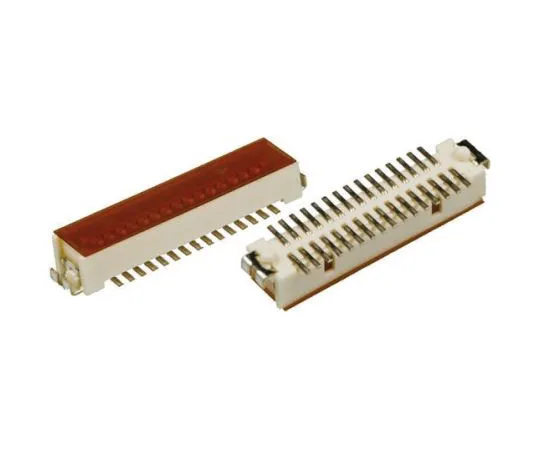

• Hirose DF9 Series 1.0 mm Board to Board Header and Socket Connectors. DF9 Series board to board header and socket connectors with a designed to comply with the VESA (Video Electronics Standards Association) FPDI-1 (Flat Panel Display Interface) standard interface connector for LCD displays. These DF9 Series PCB connectors feature a trapezoidal shaped mating interface to prevent misinsertion. An easy lock mechanism ensures that the connectors are securely mated and provides a tactile click to confirm that mating is complete. Versions of these DF9 PCB header and socket connectors are available with mounting bosses for holding the connector in place during the soldering or manual placement. The SMT socket and header connectors feature metal fittings for a secure attachment to the PCB and to prevent solder joints from peeling off due to mechanical stress. Features and Benefits. Compact design Complies with the VESA FPDI-1 standard interface connector for LCD displays Trapezoidal shaped mating interface to prevent misinsertion 4.3 mm stacking height Easy lock mechanism for secure mating Mounting bosses for holding connector in place during soldering process Metal fittings on SMT versions for secure PCB attachment and to prevent solder peel. Applications. These DF9 Series header and socket connectors ideal for *** in LCD displays on portable equipment, POS terminals, measurement devices and other hand held devices.
