Electronic/Electrical Parts and Controll Equipments

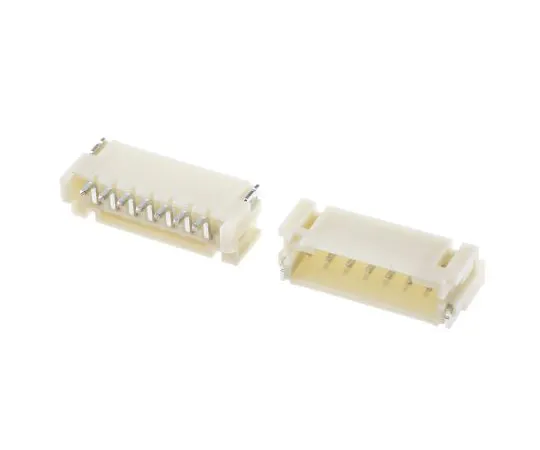

63-4965-12 JST PH, 7 Way, 1 Row, Right Angle PCB Header S7B-PH-SM4-TB(LF)(SN)
Product Description
Product Model: 63-4965-12Product Brand: JST Features Bo […]
Contact Us
Product Details
Product Model: 63-4965-12
Product Brand: JST
Features
- Board Connector PH Series Surface Mount Header, Low Insertion Force Side Entry. The JST PH Connectors are designed to meet the demand for high density connection of internal wires to printed circuit boards. It is compact, highly reliable and low in cost. Features ; Benefits. Reliable contact. Fully shrouded header. Current rating of 2A. Printed circuit board retention mechanism. Surface mount model. Voltage rating of 100 V ac. Temperature range from -25°C to 85°C. Wire size of 32 AWG to 24 AWG. Number of contacts varies from 2 to 16 pins. Contact material is brass. Tin plated contact. UL, CSA and TUV certified
Spec
- Quantity：1bag(5pieces)
- Series : PH
- Pitch : 2mm
- Number of Contacts : 7
- Number of Rows : 1
- Body Orientation : Right Angle
- Shrouded/Unshrouded : Shrouded
- Mounting Type : Surface Mount
- Termination Method : Solder
- Contact Plating : Tin
- Voltage Rating : 100 V ac/dc
- CODE No.:688-1363
