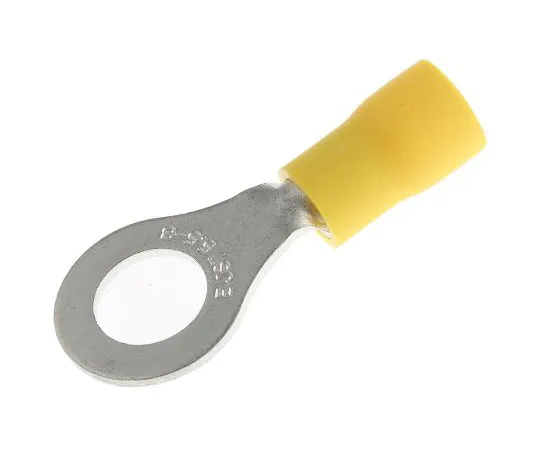

63-4964-96 JST FV Series Insulated Crimp Ring Terminal, M8 (5/16) Stud Size, 2.6mm² to 6.6mm² Wire Size, Yellow FVWS5.5-8(LF)
Product Description
Product Model: 63-4964-96Product Brand: JST Features JS […]
Contact Us
Product Details
Product Model: 63-4964-96
Product Brand: JST
Features
- JST Insulated Crimp Ring Terminals. The JST R-Type Ring Terminal is made of oxygen free cooper and features excellent electrical characteristics. The Nylon insulation ensures high flame resistance and insulation properties. Features ; Benefits. Flared entry. Oxygen free cooper with excellent electrical characteristics. High-strength brazing. Insulation. High temperature resistance (up to 105oC). A range of insulated crimp ring terminals for *** with a variety of wire and stud sizes. Insulated crimp ring terminals with part numbers prefixed ' FVWS ' have flared vinyl insulation and a butted seam Insulated crimp ring terminals with part numbers prefixed ' FVDWS ' have vinyl insulation, copper sleeve and butted seam Insulated crimp ring terminals with part numbers prefixed ' N ' have straight nylon insulation Insulated crimp ring terminals with part numbers prefixed ' FN ' have flared nylon insulation
Spec
- Quantity：1bag(100pieces)
- Series : FV
- Insulation : Insulated
- Insulation Material : Vinyl
- Inner Ring Diameter : 8.4mm
- Minimum Wire Size mm² : 2.6mm²
- Minimum Wire Size AWG : 12AWG
- Stud Size : M8 (5/16)
- Colour : Yellow
- Thickness : 1mm
- Overall Length : 34.7mm
- CODE No.:688-1296
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments

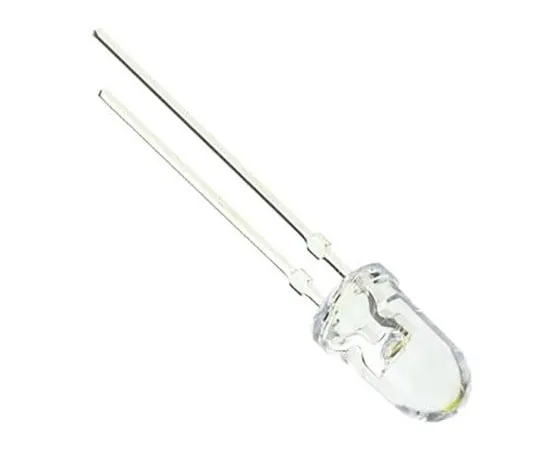

63-7955-79 3.2 V Cyan LED 5mm Through Hole, Broadcom HLMP-CE34-Y1CDD HLMP-CE34-Y1CDD
