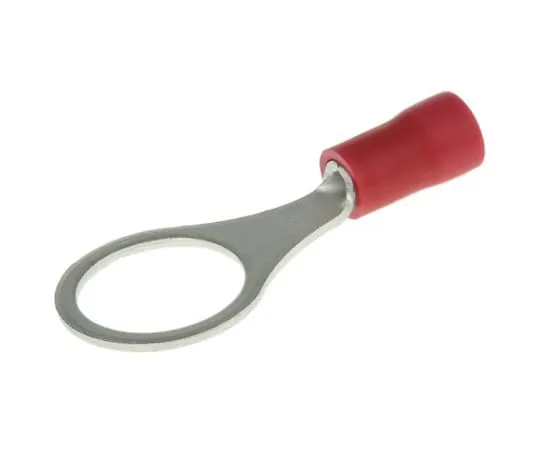

63-4964-81 JST FV Series Insulated Crimp Ring Terminal, M10 (3/8) Stud Size, 0.25mm² to 1.65mm² Wire Size, Red FVWS1.25-10(LF)
Product Description
Product Model: 63-4964-81Product Brand: JST Features JS […]
Contact Us
Product Details
Product Model: 63-4964-81
Product Brand: JST
Features
- JST Insulated Crimp Ring Terminals. The JST R-Type Ring Terminal is made of oxygen free cooper and features excellent electrical characteristics. The Nylon insulation ensures high flame resistance and insulation properties. Features ; Benefits. Flared entry. Oxygen free cooper with excellent electrical characteristics. High-strength brazing. Insulation. High temperature resistance (up to 105oC). A range of insulated crimp ring terminals for *** with a variety of wire and stud sizes. Insulated crimp ring terminals with part numbers prefixed ' FVWS ' have flared vinyl insulation and a butted seam Insulated crimp ring terminals with part numbers prefixed ' FVDWS ' have vinyl insulation, copper sleeve and butted seam Insulated crimp ring terminals with part numbers prefixed ' N ' have straight nylon insulation Insulated crimp ring terminals with part numbers prefixed ' FN ' have flared nylon insulation
Spec
- Quantity：1bag(100pieces)
- Series : FV
- Insulation : Insulated
- Insulation Material : Vinyl
- Inner Ring Diameter : 10.5mm
- Minimum Wire Size mm² : 0.25mm²
- Minimum Wire Size AWG : 22AWG
- Stud Size : M10 (3/8)
- Colour : Red
- Thickness : 0.8mm
- Overall Length : 29.7mm
- CODE No.:688-1161
