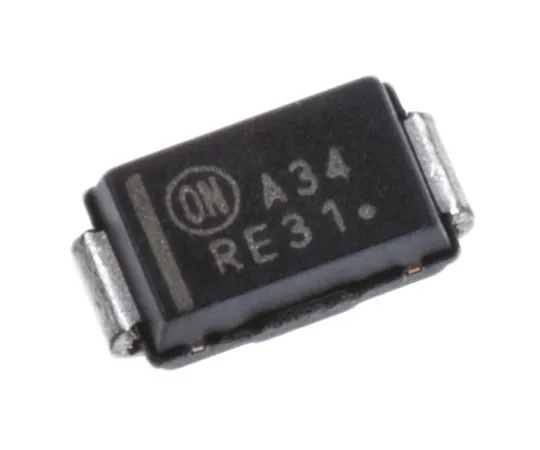

63-4964-23 ON Semi 40V 3A, Schottky Diode, 2-Pin DO-214AC MBRA340T3G MBRA340T3G
Electronic/Electrical Parts and Controll Equipments

63-4964-23 ON Semi 40V 3A, Schottky Diode, 2-Pin DO-214AC MBRA340T3G MBRA340T3G

model: 63-4964-23
brand: ON Semiconductor

Product Description

Product Model: 63-4964-23Product Brand: ON Semiconducto […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4964-23
Product Brand: ON Semiconductor

Features

  • Products with NSV-, SBR- or S-prefixed Manufacturer Part Nos are AEC-Q101 automotive qualified. ON Semiconductor Schottky Barrier Diodes. This ON Semiconductor Schottky power rectifier employs the Schottky barrier principle using a barrier metal to create the best forward voltage drop−reverse current exchange. Suitable for low voltage, high-frequency rectification as well as a freewheeling and polarity protection diode in a range of surface mount applications wherever a more compact size and weight are key. Pb-Free Designed for Optimal Automated Board Assembly Stress protection guarding Epoxy Moulded Case Lightweight 11.7mg package

Spec

  • Quantity:1bag(5pieces)
  • Diode Configuration : Single
  • Number of Elements per Chip : 1
  • Peak Reverse Repetitive Voltage : 40V
  • Mounting Type : Surface Mount
  • Package Type : DO-214AC (SMA)
  • Diode Technology : Schottky
  • Pin Count : 2
  • Maximum Forward Voltage Drop : 450mV
  • Peak Non-Repetitive Forward Surge Current : 100A
  • CODE No.:688-0502
