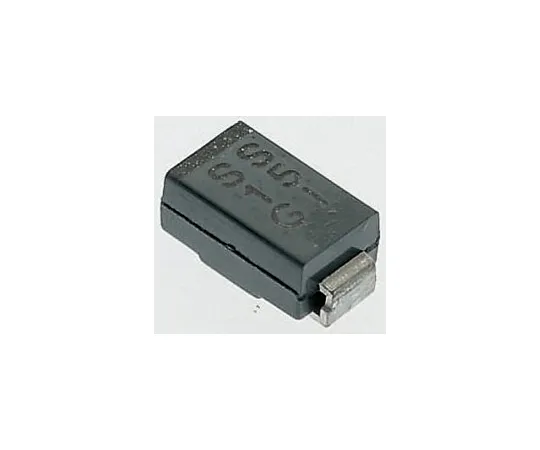

63-4964-22 ON Semi 20V 1A, Schottky Diode, 2-Pin DO-214AC MBRA120ET3G MBRA120ET3G
model:
63-4964-22
brand:
ON Semiconductor
Product Description
Product Model: 63-4964-22Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-4964-22
Product Brand: ON Semiconductor
Features
- Products with NSV-, SBR- or S-prefixed Manufacturer Part Nos are AEC-Q101 automotive qualified. ON Semiconductor Schottky Barrier Diodes. This ON Semiconductor Schottky power rectifier employs the Schottky barrier principle using a barrier metal to create the best forward voltage drop−reverse current exchange. Suitable for low voltage, high-frequency rectification as well as a freewheeling and polarity protection diode in a range of surface mount applications wherever a more compact size and weight are key. Pb-Free Designed for Optimal Automated Board Assembly Stress protection guarding Epoxy Moulded Case Lightweight 11.7mg package
Spec
- Quantity：1bag(5pieces)
- Diode Configuration : Single
- Number of Elements per Chip : 1
- Peak Reverse Repetitive Voltage : 20V
- Mounting Type : Surface Mount
- Package Type : DO-214AC (SMA)
- Diode Type : Schottky
- Pin Count : 2
- Peak Non-Repetitive Forward Surge Current : 40A
- CODE No.:688-0499
