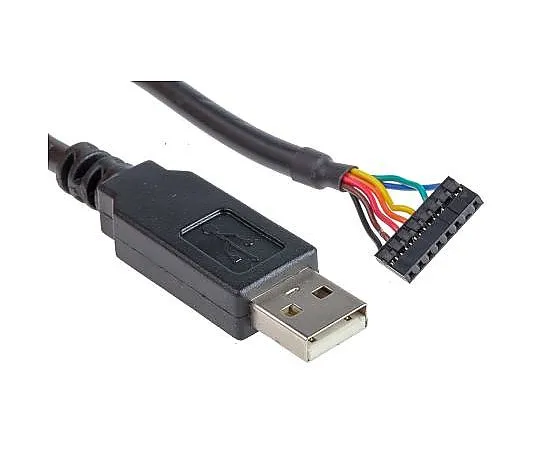

63-4963-32 FTDI Chip, 3.3 V TTL 2mm pitch USB to UART Cable - TTL-232R-3V3-2mm TTL-232R-3V3-2mm
Product Description
Product Model: 63-4963-32Product Brand: FTDI Chip Featu […]
Contact Us
Product Details
Product Model: 63-4963-32
Product Brand: FTDI Chip
Features
- USB to TTL UART Cable, FTDI Chip. The FTDI Chip TTL-232x USB to Serial UART (TTL level) converter cables provide a simple and fast way to convert microcontroller UART serial I/O to USB. The TTL-232R contains a small circuit board which includes the FT232x chip. Encapsulated in a USB-A connector, making the cable easy and straight forward to ***. The circuit is powered from the USB +5 V power pins, and any Vcc connection is always at +5 V dc. However products are available with signal TTL logic levels of either +3.3 V or +5 V. These cables are supported with Microsoft WHQL certified VCP drivers for Windows, Apple Mac, and Linux. All of which are available, royalty-free from the FTDI website. http://www.ftdichip.com USB 2.0 compatible Cable length: 1.8m Data transfer rate: Up to 3Mbps (FT232R parts), 12Mbps (FT232H parts) Unique serial number attached, ***d for security purposes whilst transferring files via cable Powered from USB connector Various UART-*** connector options available CE and FCC compliant. Available Options:. USB connector with PCB only (no cables) FTDI Chip TTL-232R-3V3-PCB (RS ; 429-284 429-284 ) +3.3 V UART signalling FTDI Chip TTL-232R-5V-PCB (RS ; 429-278 429-278 ) +5 V UART signalling USB connector and wire ***ed 6 core with 24 AWG output FTDI Chip TTL-232RG-VSW3V3-WE (RS ; 715-8522 715-8522 ) +3.3 V UART signalling FTDI Chip TTL-232RG-VSW5V-WE (RS ; 730-0155 730-0155 ) +5 V UART signalling FTDI Chip TTL-232RG-VREG3V3-WE (RS ; 715-8529 715-8529 ) +3.3 V UART signalling FTDI Chip TTL-232RG-VREG1V8-WE (RS ; 715-8525 715-8525 ) +1.8 V UART signalling FTDI Chip TTL-232RG-VIP-WE (RS ; 715-8513 715-8513 ) includes voltage reference for setting UART signalling levels FTDI Chip TTL-232R-3V3-WE (RS ; 429-303 429-303 ) +3.3 V UART signalling (v1) FTDI Chip TTL-232R-5V-WE (RS ; 687-7786 687-7786 ) +5 V UART signalling (v1) USB connector and 6 way, 0.1 inch single inline connector FTDI Chip TTL-232R-3V3 (RS ; 429-307 429-307 ) +3.3 V UART signalling FTDI Chip TTL-232R-5V (RS ; 687-7770 687-7770 ) +5 V UART signalling USB connector and 8-pin, keyed 2 mm pitch connector FTDI Chip TTL-232R-3V3-2mm (RS ; 687-7780 687-7780 ) +3.3 V UART signalling USB connector and 3.5 mm audio jack connector FTDI Chip TTL-232R-5V-AJ (RS ; 687-7774 687-7774 ) +5 V UART signalling FTDI Chip TTL-232R-3V3-AJ (RS ; 687-7783 687-7783 ) +3.3 V UART signalling
Spec
- Quantity:1piece
- Interface Function : USB to UART
- Kit Classification : Cable
- Kit Name : 3.3 V TTL 2mm pitch
- CODE No.:687-7780
