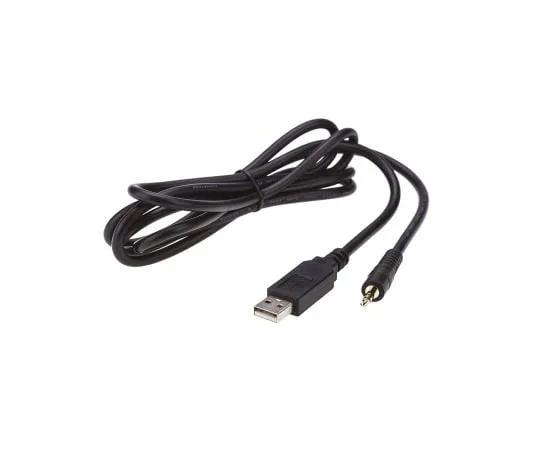

63-4963-31 FTDI Chip, 5 V TTL 3.5mm Jack USB to UART Cable - TTL-232R-5V-AJ TTL-232R-5V-AJ
Electronic/Electrical Parts and Controll Equipments

63-4963-31 FTDI Chip, 5 V TTL 3.5mm Jack USB to UART Cable - TTL-232R-5V-AJ TTL-232R-5V-AJ

model: 63-4963-31
brand: FTDI Chip

Product Description

Product Model: 63-4963-31Product Brand: FTDI Chip Featu […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4963-31
Product Brand: FTDI Chip

Features

  • USB to TTL UART Cable, FTDI Chip. The FTDI Chip TTL-232x USB to Serial UART (TTL level) converter cables provide a simple and fast way to convert microcontroller UART serial I/O to USB. The TTL-232R contains a small circuit board which includes the FT232x chip. Encapsulated in a USB-A connector, making the cable easy and straight forward to ***. The circuit is powered from the USB +5 V power pins, and any Vcc connection is always at +5 V dc. However products are available with signal TTL logic levels of either +3.3 V or +5 V. These cables are supported with Microsoft WHQL certified VCP drivers for Windows, Apple Mac, and Linux. All of which are available, royalty-free from the FTDI website. http://www.ftdichip.com USB 2.0 compatible Cable length: 1.8m Data transfer rate: Up to 3Mbps (FT232R parts), 12Mbps (FT232H parts) Unique serial number attached, ***d for security purposes whilst transferring files via cable Powered from USB connector Various UART-*** connector options available CE and FCC compliant. Available Options:. USB connector with PCB only (no cables) FTDI Chip TTL-232R-3V3-PCB (RS ; 429-284 429-284 ) +3.3 V UART signalling FTDI Chip TTL-232R-5V-PCB (RS ; 429-278 429-278 ) +5 V UART signalling USB connector and wire ***ed 6 core with 24 AWG output FTDI Chip TTL-232RG-VSW3V3-WE (RS ; 715-8522 715-8522 ) +3.3 V UART signalling FTDI Chip TTL-232RG-VSW5V-WE (RS ; 730-0155 730-0155 ) +5 V UART signalling FTDI Chip TTL-232RG-VREG3V3-WE (RS ; 715-8529 715-8529 ) +3.3 V UART signalling FTDI Chip TTL-232RG-VREG1V8-WE (RS ; 715-8525 715-8525 ) +1.8 V UART signalling FTDI Chip TTL-232RG-VIP-WE (RS ; 715-8513 715-8513 ) includes voltage reference for setting UART signalling levels FTDI Chip TTL-232R-3V3-WE (RS ; 429-303 429-303 ) +3.3 V UART signalling (v1) FTDI Chip TTL-232R-5V-WE (RS ; 687-7786 687-7786 ) +5 V UART signalling (v1) USB connector and 6 way, 0.1 inch single inline connector FTDI Chip TTL-232R-3V3 (RS ; 429-307 429-307 ) +3.3 V UART signalling FTDI Chip TTL-232R-5V (RS ; 687-7770 687-7770 ) +5 V UART signalling USB connector and 8-pin, keyed 2 mm pitch connector FTDI Chip TTL-232R-3V3-2mm (RS ; 687-7780 687-7780 ) +3.3 V UART signalling USB connector and 3.5 mm audio jack connector FTDI Chip TTL-232R-5V-AJ (RS ; 687-7774 687-7774 ) +5 V UART signalling FTDI Chip TTL-232R-3V3-AJ (RS ; 687-7783 687-7783 ) +3.3 V UART signalling

Spec

  • Quantity:1piece
  • Interface Function : USB to UART
  • Kit Classification : Cable
  • Kit Name : 5 V TTL 3.5mm Jack
  • CODE No.:687-7774
