Electronic/Electrical Parts and Controll Equipments

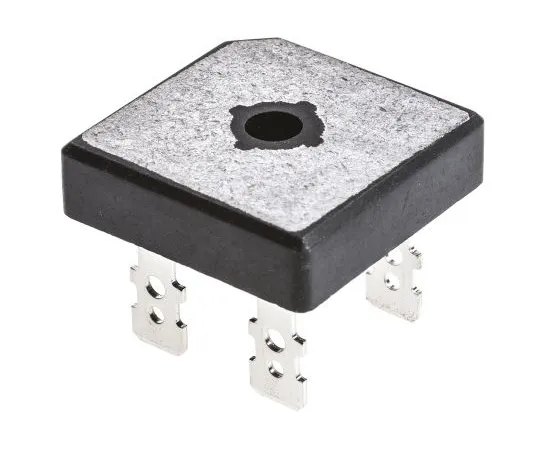

63-4963-01 Taiwan Semiconductor GBPC5010 T0, Bridge Rectifier, 50A 1000V, 4-Pin GBPC GBPC5010 T0
model:
63-4963-01
brand:
Taiwan Semiconductor
Product Description
Product Model: 63-4963-01Product Brand: Taiwan Semicond […]
Contact Us
Product Details
Product Model: 63-4963-01
Product Brand: Taiwan Semiconductor
Features
- UL E-96005. Bridge Rectifiers with Push-on Terminals, GBPC 50 Series, Taiwan Semiconductor. High Current 50 A Glass passivated junction Integrally molded heat-sink provided low thermal resistance for maximum heat dissipation Isolated voltage from case to lead over 2500 V Fast-on Terminals
Spec
- Quantity：1piece
- Bridge Type : Single Phase
- Peak Average Forward Current : 50A
- Peak Reverse Repetitive Voltage : 1000V
- Mounting Type : Screw Mount
- Package Type : GBPC
- Pin Count : 4
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 400A
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -50 °C
- Peak Forward Voltage : 1.1V
- Peak Reverse Current : 10µA
- Length : 29mm
- Width : 29mm
- CODE No.:687-5803
