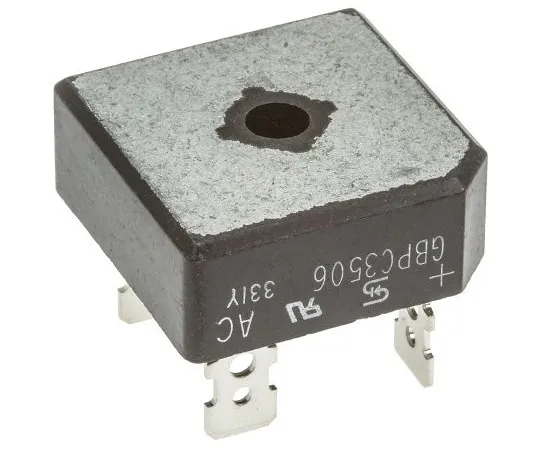

63-4962-95 Taiwan Semiconductor GBPC3506 T0, Bridge Rectifier, 35A 600V, 4-Pin GBPC GBPC3506 T0
model:
63-4962-95
brand:
Taiwan Semiconductor
Product Description
Product Model: 63-4962-95Product Brand: Taiwan Semicond […]
Contact Us
Product Details
Product Model: 63-4962-95
Product Brand: Taiwan Semiconductor
Features
- UL E-96005. Bridge Rectifiers with Push-on Terminals, GBPC 35 Series, Taiwan Semiconductor. High Current 35 Amperes Integrally molded heat-sink provided very low thermal resistance for maximum heat dissipation Isolated voltage from case to lead over 2500V Fast-on Terminals
Spec
- Quantity：1bag(2pieces)
- Bridge Type : Single Phase
- Peak Average Forward Current : 35A
- Peak Reverse Repetitive Voltage : 600V
- Mounting Type : Screw Mount
- Package Type : GBPC
- Pin Count : 4
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 400A
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -50 °C
- Peak Forward Voltage : 1.1V
- Peak Reverse Current : 5µA
- Length : 29mm
- Dimensions : 29 x 29 x 11.23mm
- CODE No.:687-5784
