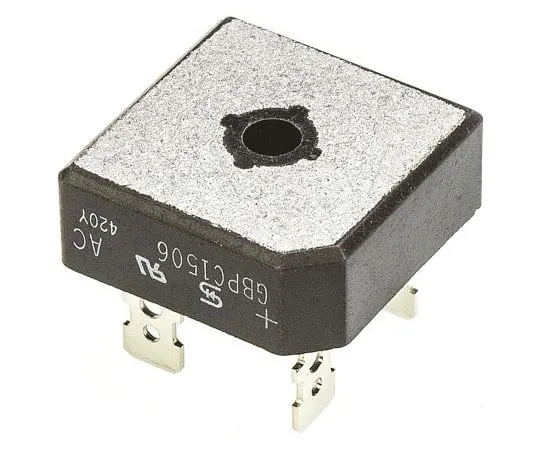

63-4962-93 Taiwan Semiconductor GBPC1506 T0, Bridge Rectifier, 15A 600V, 4-Pin GBPC GBPC1506 T0
model:
63-4962-93
brand:
Taiwan Semiconductor
Product Description
Product Model: 63-4962-93Product Brand: Taiwan Semicond […]
Contact Us
Product Details
Product Model: 63-4962-93
Product Brand: Taiwan Semiconductor
Features
- UL E-96005. Bridge Rectifiers with Push-on Terminals, GBPC 15 Series, Taiwan Semiconductor. High Current 15 Amperes Glass passivated chip junction Integrally molded heat-sink provided very low thermal resistance for maximum heat dissipation Isolated voltage from case to lead over 2500V Fast-on Terminals
Spec
- Quantity：1bag(2pieces)
- Bridge Type : Single Phase
- Peak Average Forward Current : 15A
- Peak Reverse Repetitive Voltage : 600V
- Mounting Type : Screw Mount
- Package Type : GBPC
- Pin Count : 4
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 300A
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -50 °C
- Peak Forward Voltage : 1.1V
- Peak Reverse Current : 5µA
- Length : 29mm
- Width : 29mm
- CODE No.:687-5686
