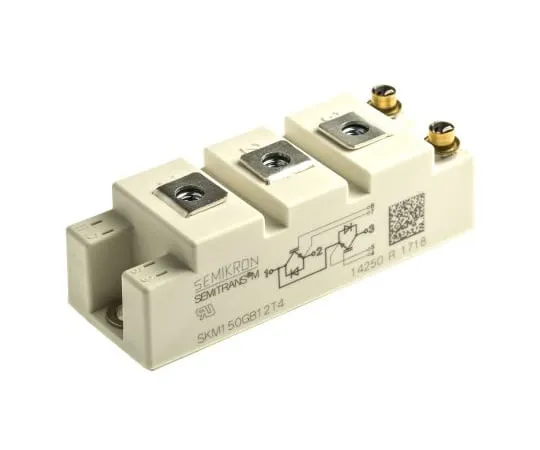

63-4962-67 Semikron SKM150GB12T4 , SEMITRANS2 , N-Channel Dual Half Bridge IGBT Module, 232 A max, 1200 V, Panel Mount SKM150GB12T4
Product Description
Product Model: 63-4962-67Product Brand: Semikron Featur […]
Contact Us
Product Details
Product Model: 63-4962-67
Product Brand: Semikron
Features
- Dual IGBT Modules. A range of SEMITOP® IGBT modules from Semikron incorporating two series-connected (half bridge) IGBT devices. The modules are available in a wide range of voltage and current ratings and are suitable for a variety of power switching applications such as AC inverter motor drives and Uninterruptible Power Supplies. Compact SEMITOP® package Suitable for switching frequencies up to 12kHz Insulated copper baseplate using Direct Bonded Copper technology
Spec
- Quantity：1piece
- Transistor Configuration : Series
- Maximum Continuous Collector Current : 232 A
- Maximum Collector Emitter Voltage : 1200 V
- Maximum Gate Emitter Voltage : ±20V
- Channel Type : N
- Mounting Type : Panel Mount
- Package Type : SEMITRANS2
- Pin Count : 7
- Dimensions : 94 x 34 x 30.1mm
- Height : 30.1mm
- Length : 94mm
- Maximum Operating Temperature : +175 °C
- Width : 34mm
- CODE No.:687-4964
