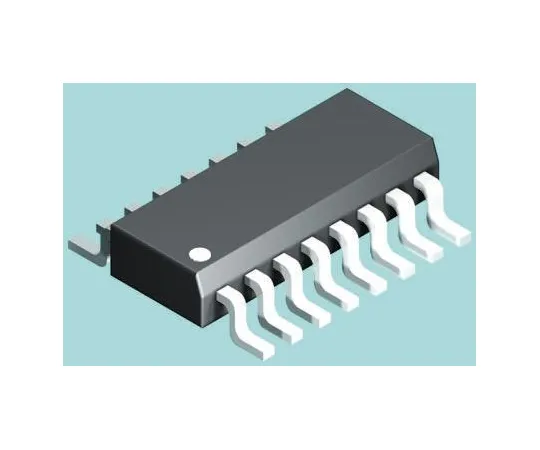

63-4961-31 STMicroelectronics ULN2004D1013TR, 7-element NPN Darlington Pair, 500 mA 50 V HFE:1000, 16-Pin SOIC ULN2004D1013TR
model:
63-4961-31
brand:
STMicroelectronics
Product Description
Product Model: 63-4961-31Product Brand: STMicroelectron […]
Contact Us
Product Details
Product Model: 63-4961-31
Product Brand: STMicroelectronics
Features
- Darlington Transistor Arrays, STMicroelectronics. Darlington transistor power drivers are high-voltage, high-current switch arrays containing multiple open-collector Darlington pairs and integral suppression diodes for inductive loads. The high current rating of each output is 500 mA or higher. The inputs are pinned opposite the outputs in the IC package to simplify the application board layout. The interface is standard logic level for TTL or CMOS.
Spec
- Quantity：1bag(20pieces)
- Transistor Type : NPN
- Maximum Continuous Collector Current : 500 mA
- Maximum Collector Emitter Voltage : 50 V
- Package Type : SOIC
- Mounting Type : Surface Mount
- Pin Count : 16
- Transistor Configuration : Common Emitter
- Number of Elements per Chip : 7
- Minimum DC Current Gain : 1000
- Maximum Collector Emitter Saturation Voltage : 1.6 V
- Width : 4mm
- CODE No.:686-8161
