Electronic/Electrical Parts and Controll Equipments

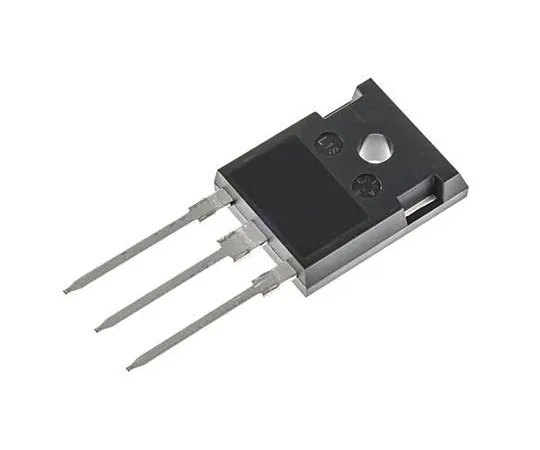

63-4961-22 IXTH12N100L N-Channel MOSFET, 12 A, 1000 V Linear, 3-Pin TO-247 IXYS IXTH12N100L
Product Description
Product Model: 63-4961-22Product Brand: IXYS Features N […]
Contact Us
Product Details
Product Model: 63-4961-22
Product Brand: IXYS
Features
- N-Channel Power MOSFET, IXYS Linear Series. N-Channel Power MOSFETs designed specifically for linear operation. These devices feature ext***ed Forward Bias Safe Operating Area (FBSOA) for increased ruggedness and reliability.
Spec
- Quantity：1piece
- Channel Type : N
- Maximum Continuous Drain Current : 12 A
- Maximum Drain Source Voltage : 1000 V
- Maximum Drain Source Resistance : 1.3 Ω
- Maximum Gate Threshold Voltage : 5V
- Maximum Gate Source Voltage : -30 V, +30 V
- Package Type : TO-247
- Mounting Type : Through Hole
- Transistor Configuration : Single
- Channel Mode : Enhancement
- Category : Power MOSFET
- Maximum Power Dissipation : 400 W
- Dimensions : 16.26 x 5.3 x 21.46mm
- CODE No.:686-7840
