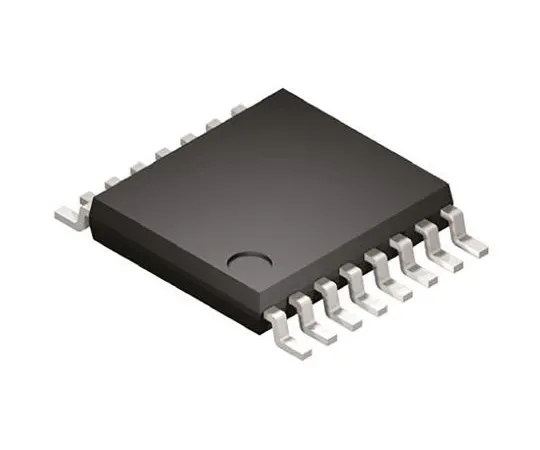

63-4961-12 EXAR SP3232EEY-L, Line Transceiver, RS-232 2-TX 2-RX 2-TRX, 3.3 V, 5 V, 16-Pin TSSOP SP3232EEY-L
Product Description
Product Model: 63-4961-12Product Brand: EXAR Features R […]
Contact Us
Product Details
Product Model: 63-4961-12
Product Brand: EXAR
Features
- RS-232 Line Drivers and Receivers, EXAR. Exar offers a wide range of RS232 serial communication standard (also known as TIA/EIA-232) devices. They span over a range of data rates from 20kbps to 1Mbps, including the popular 120kbps and 250kbps speeds. RS-232 transceivers operate from a single 5V supply, and many can operate with a supply voltage as low as 3V The enhanced ESD (ElectroStatic Discharge) up to +/-15kV IEC 61000-4-2, and/or +/-15kV HBM (Human Body Model) Most of Exar s devices are pin and spec compatible with popular industry standard devices for direct drop-in replacement
Spec
- Quantity：1bag(5pieces)
- Number of Transmitters : 2
- Package Type : TSSOP
- Mounting Type : Surface Mount
- Pin Count : 16
- Number of Receivers : 2
- Typical Single Supply Voltage : 3.3 V, 5 V
- Data Rate : 235kbps
- Number of Transceivers : 2
- Interface Standards : RS-232
- Transmitter Signal Type : Single Ended
- Receiver Signal Type : Single Ended
- Minimum Operating Temperature : -40 °C
- Maximum Operating Temperature : +85 °C
- Width : 4.4mm
- CODE No.:686-5544
