Electronic/Electrical Parts and Controll Equipments

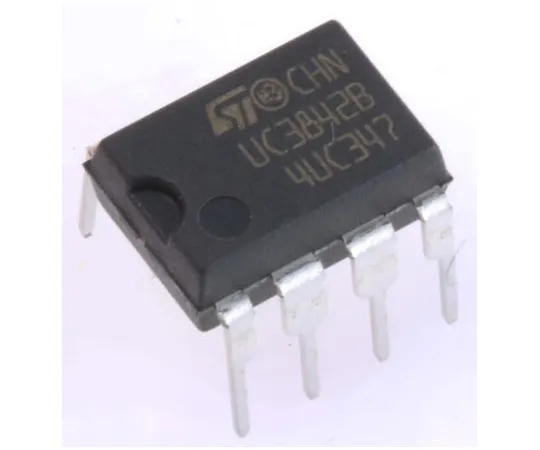

63-4961-07 STMicroelectronics UC3842BN, PWM Current Mode Controller, 1 A, 500 kHz 8-Pin PDIP UC3842BN
model:
63-4961-07
brand:
STMicroelectronics
Product Description
Product Model: 63-4961-07Product Brand: STMicroelectron […]
Contact Us
Product Details
Product Model: 63-4961-07
Product Brand: STMicroelectronics
Features
- PWM Controllers, STMicroelectronics. Pulse-width modulator (PWM) controllers can support isolated and non-isolated AC-DC and DC-DC switch mode power supplies. They are based on the most popular topologies in both single-***ed, such as fly-back, forward or quasi-resonant controllers, and double-***ed configurations, such as asymmetrical half-bridge, for Switch Mode Power Supplies (SMPS). The PMW controllers also integrate a comprehensive set of protections for enhanced robustness and reliability.
Spec
- Quantity：1bag(10pieces)
- Number of PWM Outputs : 1
- Control Method : Current
- Topology : Boost, Flyback, Forward
- Rise Time : 50ns
- Fall Time : 50ns
- Maximum Duty Cycle : 100%
- Maximum Switching Frequency : 500 kHz
- Mounting Type : Through Hole
- Package Type : PDIP
- Pin Count : 8
- Output Current : 1 A
- Width : 6.6mm
- CODE No.:686-5033
