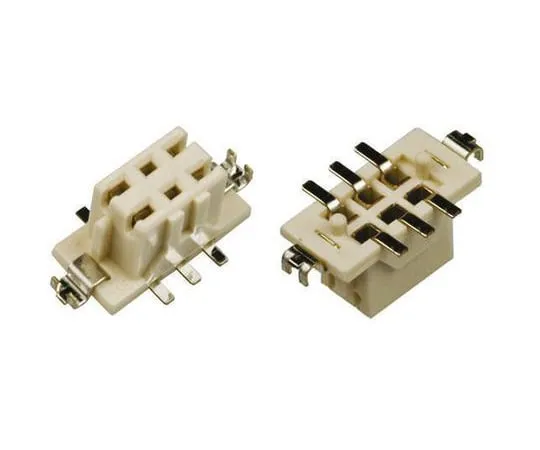

63-4960-54 Hirose DF11 Series 2mm Pitch 8 Way 2 Row Straight PCB Socket, Surface Mount, Solder Termination DF11CZ-8DS-2V(22)
Electronic/Electrical Parts and Controll Equipments

63-4960-54 Hirose DF11 Series 2mm Pitch 8 Way 2 Row Straight PCB Socket, Surface Mount, Solder Termination DF11CZ-8DS-2V(22)

model: 63-4960-54
brand: Hirose

Product Description

Product Model: 63-4960-54Product Brand: Hirose Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4960-54
Product Brand: Hirose

Features

  • DF11 2mm SMT receptacle connectors with part numbers DF11CZ-xxxx-xx(22) have tin plated contacts DF11 2mm SMT pin header connectors with part numbers DF11CZ-xxxx-xx(52) have gold plated contacts. Hirose DF11 Series 2.00 mm PCB Socket Connectors. DF11 series 2.00 mm PCB socket connectors with a compact double row design and a depth of less than 5 mm. This space saving design allows a double row of contacts to be provided in the same space as a single row connector. The housings of these DF11 series PCB sockets feature guide ribs that prevent incorrect insertion and twisting when mating. Metal fittings on the SMT versions increase retention on the PCB and prevent solder peeling. These DF11 series 2.00 mm PCB sockets are available as through hole or SMT mounting and mate with DF11 series PCB headers for *** in board to board applications. Features and Benefits. Compact, space saving design 5 mm depth allows double row contact configuration in same space as single row connector Guide ribs to prevent mismating Metal fittings for secure PCB retention Suitable board to board applications. Applications. Portable devices that require multiple signals with a space saving footprint. Digital cameras LCD displays Digital video recorders Car navigation Access control units Measurement devices

Spec

  • Quantity:1bag(10pieces)
  • Number of Contacts : 8
  • Number of Rows : 2
  • Pitch : 2mm
  • Type : Socket Strip
  • Mounting Type : Surface Mount
  • Body Orientation : Straight
  • Termination Method : Solder
  • Current Rating : 2A
  • Series : DF11
  • Contact Material : Tin Plated
  • CODE No.:685-4724
