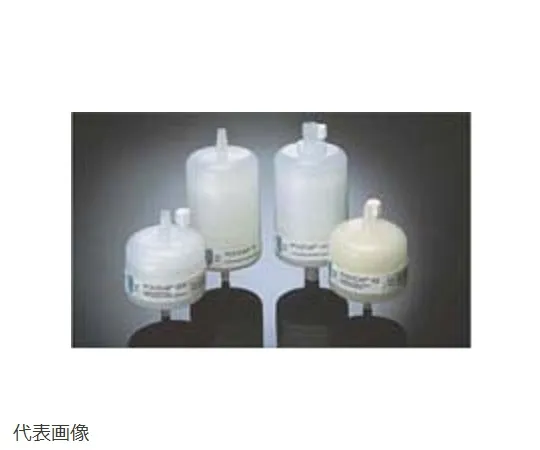

62-6177-21 Poly Cap TF75(0.2 μm, Inlet: 3/8"FNPT, Outlet: 3/8"FNPT)1 Pack (5 Pieces) 2702T
Analyzer, Testing Equipment

62-6177-21 Poly Cap TF75(0.2 μm, Inlet: 3/8"FNPT, Outlet: 3/8"FNPT)1 Pack (5 Pieces) 2702T

model: 62-6177-21
brand: Cytiva (Whatman)

Product Description

Product Model: 62-6177-21Product Brand: Cytiva (Whatman […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 62-6177-21
Product Brand: Cytiva (Whatman)

Features

  • Solvent resistance with PTFE filters
  • Recomm***ed for organic solvents and erosive solutions
  • Capsule type filters with the smallest pore size (5 types of 0.05, 0.1, 0.2, 0.45, 1.0 μm)
  • Sterilization with autoclave or ethylene oxide gas is possible. Integrity testing is possible.
  • Note)Only for test and research purposes.

Spec

  • Housing: Polypropylene
  • Membrane Material: Polytetrafluoroethylene
  • vents: inlet side
  • Support System: Polypropylene
  • Connection Method: Heat Crimping
  • Voltage: 0.41 MPa (60psi)
  • Filtration direction: with bidirectional support. Only one direction dep***ing on the application due to venting. Reverse filtration is possible only at low pressure.
  • Sterilization: Unsterilized/Autoclavable at 121°C for 20 minutes (maximum temperature 132°C). It is possible to autoclave repeatedly, but *** at the ***r's responsibility to avoid cross contamination. Perform the integrity test after autoclaving. Sterilization with ethylene oxide gas is possible.
  • Effective Filtration Area: 1,000 cm2
  • IPA Bubble Point: > 0.09 MPa (13psi)
  • Pore Diameter (μm): 0.2
  • Connection Inlet: 3/8 "FNPT
  • Connection Outlet: 3/8 "FNPT
  • FNPT= Female Thread NPT
