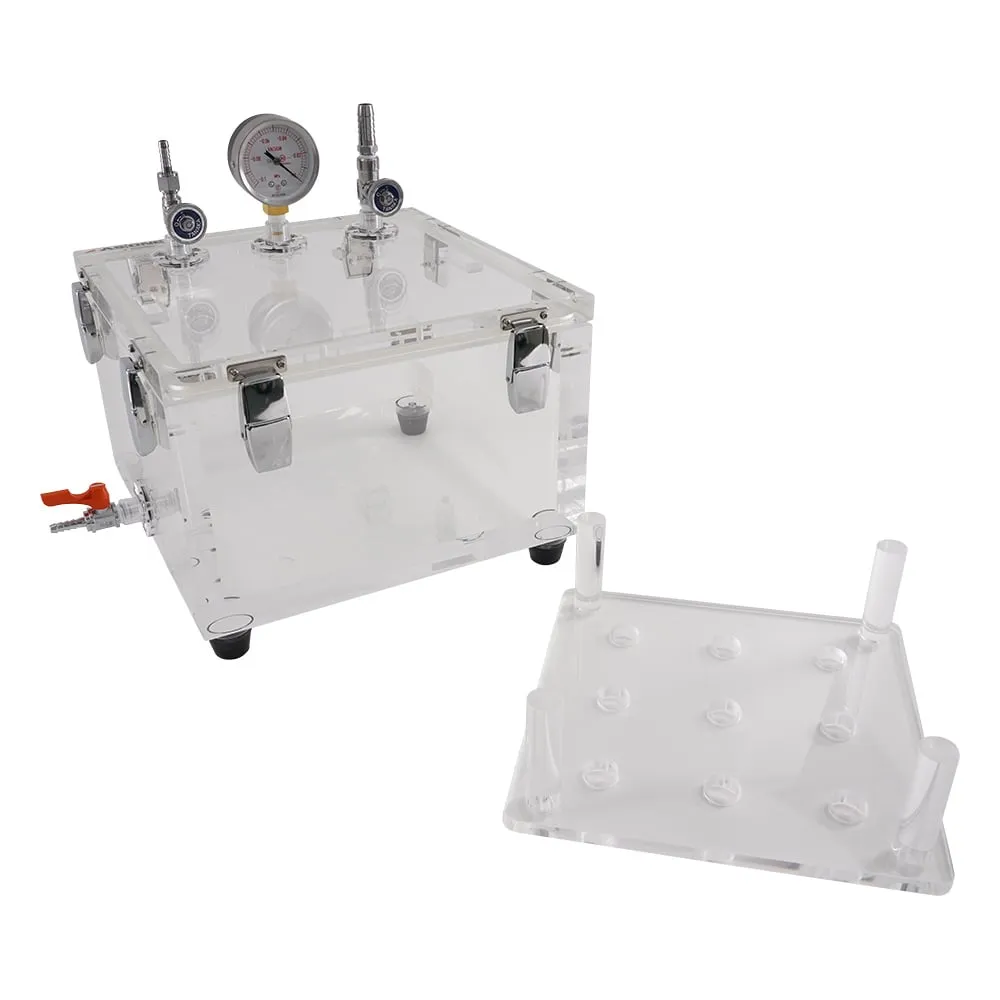

3-6773-01 Vacuum Desiccator for Leak Test 300 x 300 x 220 VRT
Product Description
Product Model: 3-6773-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 3-6773-01
Product Brand: AS ONE Corporation
Features
- Uses highly sealable silicon packing and does not require grease.
- Compact size for easy handling.
- Valves and vacuum gauges are placed on the top surface in consideration of the intake of test fluid.
- It has a drain valve for easy drainage of test fluid.
- Since the sample presser plate is not fixed, it can be taken out and ***d as a vacuum desiccator.
Spec
- Model number: VRT
- external dimension (mm): 300 x 300 x 220
- Inside volume (L): about 10
- inner size: 260 x 260 x 150 mm
- Material: Main and Door / Acrylic Transparent Plastic (plate thickness: 20 mm), door packing / Silicone rubber φ8
- Allowable vacuum: about 133 Pa
- Recomm***ed vacuum pumps: (2-944-02) GM-20 D Dry vacuum pumps
- Accessories: vacuum valve (outer diameter φ8 ・ φ 14 with hose nipple x each 1 piece), vacuum gauge, sample pressing plate, drain valve
