62-4128-25 BIZ-FU Crimp Type System A1 B30101A1
Analyzer, Testing Equipment

62-4128-25 BIZ-FU Crimp Type System A1 B30101A1

model: 62-4128-25
brand: CHUO PRECISION INDUSTRIAL Co., Ltd.

Product Description

Product Model: 62-4128-25Product Brand: CHUO PRECISION […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 62-4128-25
Product Brand: CHUO PRECISION INDUSTRIAL Co., Ltd.

Features

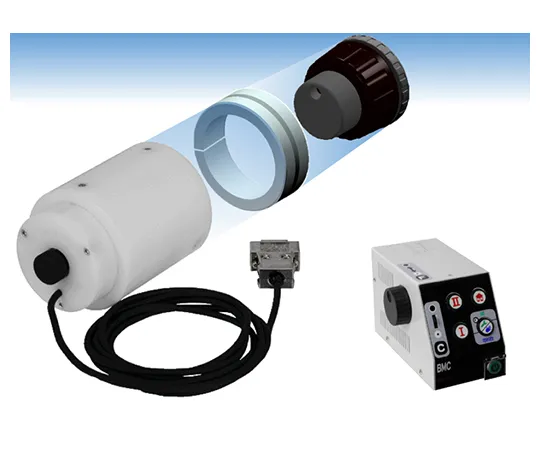

  • By electrifying the micromotion focus of the microscope, automated control and remote control are possible.
  • Easy installation due to the coarse movement handle fixing system instead of the conventional torque adjusting ring fixing system
  • With the included driver controller integrated with the operation panel, it is possible to jog for manual operation and to set an arbitrary focal point at three points and call up.
  • Equipped with a switch for coarse and fine movement operation, allowing for instantaneous *** of different movement amounts
  • Can be attached to various microscopes by selecting an adapter
  • Speed setting, position information setting, homing operation setting, etc. are possible by RS232 communication.
  • The front is equipped with a power supply cover to prevent operation errors.

Spec

  • Materials: B30201: Resin
  • Use Environment: 10~40 °C/20~ 80% (non-condensing)
  • Input Power Requirements: B30202: 90~240 VAC 50/60Hz
  • Electrical Power Consumption: *2
  • Weight: 2.1 kg
  • Motor Type (Motor Tyoe): B30201:5 Phase Stepping Motor (0.75 A/Phase)
  • Full step (1/1): 0.72 degree stepper (mechanical),
  • Half Step (1/2): 0.36 degree stepper (BMC-BIZ-FU controller)
  • when ***d)
  • Control Method: B30202: Open loop control
  • Maximum Acceleration Time: B30202:1~1,000 ms
  • Number of Controlled Axes: B30202:1 axis (standard step driver)
  • Communication Interface: B30202: RS-232C
