62-4128-24 BIXY Stage STD System (NK) A1 B30117A1
Analyzer, Testing Equipment

62-4128-24 BIXY Stage STD System (NK) A1 B30117A1

model: 62-4128-24
brand: CHUO PRECISION INDUSTRIAL Co., Ltd.

Product Description

Product Model: 62-4128-24Product Brand: CHUO PRECISION […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 62-4128-24
Product Brand: CHUO PRECISION INDUSTRIAL Co., Ltd.

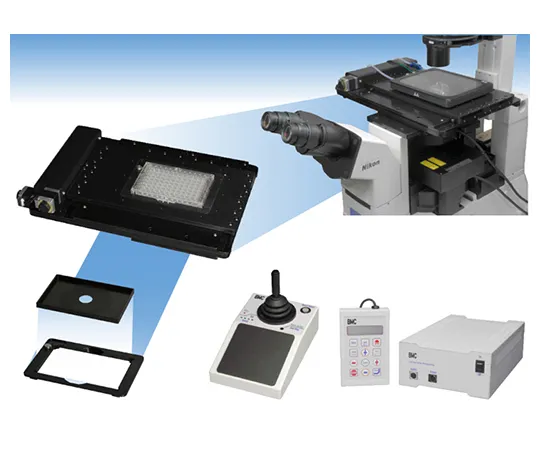

Features

  • The XY stage of the microscope can be electrified
  • The included controller and control unit allow for manual jog movement, step movement that allows a set amount of movement, and teaching movement that allows one set coordinate to be moved one after another.
  • The operator can grasp how far the stage has moved by setting the display unit.
  • Standard support for K standard holders

Spec

  • Materials: B30231: Aluminum Alloy
  • Use Environment: 10~40 °C/20~ 80% (non-condensing)
  • Input Power Requirements: B30205: 90~240 VAC 50/60Hz
  • Electrical power consumption: 57VA
  • Compatible Container (Supported Devices): Well Plate, φ35 mm Dish,
  • Single Type Slide Glass
  • Weight: 8.6 kg
  • Direction of travel: B30231: X (A) Y (B) axis 2 direction
  • Travel Range: B30231: X-Axis ±55 mm, Y-Axis ±37.5 mm
  • Resolution Minimum Step Size (Resolution): B30231:
  • Full step (1/1): 2 μm (mechanical),
  • Half Step (1/2): 1 μm (When BMC-M752 is Used)
  • Repeatability: B30231:2 μm*1
  • Leadscrew Pitch: B30231:1 mm
  • Motor Type (Motor Tyoe): B30231:5 Phase Stepping Motor (0.75 A/Phase)
  • Full step (1/1): 0.72 degree stepper (mechanical),
  • Half Step (1/2): 0.36 degree stepper (when BMC-M752 is ***d)
  • Control Method: B30205: Open loop control
  • Maximum Acceleration Time: B30205:1~1,000 ms
  • Maximum Velocity:
  • Full step (1/1):30mm/s (15,000pps),
  • Half Step (1/2):30mm/s (30,000pps)
  • Number of Controlled Axes: B30205:2 Axes (Standard Step Driver)
  • Communication Interface: B30205: RS-232C
