62-4128-23 BIXY Stage FFP System (OL) A1 B30109A1
Product Description
Product Model: 62-4128-23Product Brand: CHUO PRECISION […]
Contact Us
Product Details
Product Model: 62-4128-23
Product Brand: CHUO PRECISION INDUSTRIAL Co., Ltd.
Features

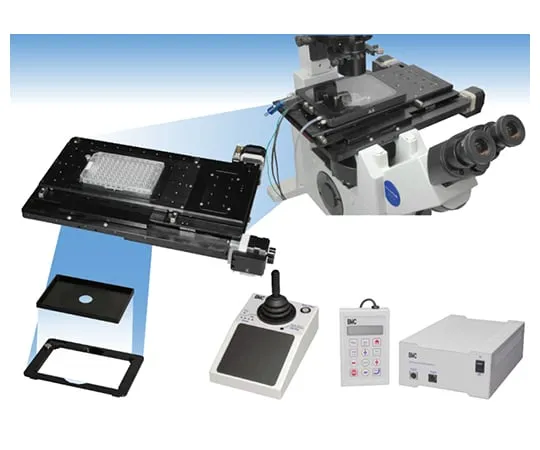

- The XY stage of the microscope can be electrified
- The included controller and control unit allow for manual jog movement, step movement that allows a set amount of movement, and teaching movement that allows one set coordinate to be moved one after another.
- The operator can grasp how far the stage has moved by setting the display unit.
- Standard support for K standard holders
- Can be attached to various microscopes by selecting an adapter
- It has a wide operating range and a full flat shape. When combined with a stereomicroscope, macrofluorescence microscope, etc., it can observe objects exceeding the size of a well plate.
Spec
- Materials: B30218: Aluminum Alloy
- Use Environment: 10~40 °C/20~ 80% (non-condensing)
- Input Power Requirements: B30219: 90~240 VAC 50/60Hz
- Electrical power consumption: 48VA
- Compatible Container (Supported Devices): Well Plate, φ35 mm Dish,
- Single Type Slide Glass
- Weight: 9.6 kg
- Direction of travel: B30218: X (A) Y (B) axis 2 direction
- Travel Range: B30218: X-Axis ±60 mm, Y-Axis ±50 mm
- Resolution Minimum Step Size (Resolution): B30218:
- Full step (1/1): 2 μm (mechanical),
- Micro Step (1/1~1/250): 2 μm~8 nm (When Using BMC-M 752)
- Repeatability: B30218:0.7 μm*1
- Leadscrew Pitch: B30218:1 mm
- Motor Type (Motor Tyoe): B30218:5 Phase Stepping Motor (0.75 A/Phase)
- Full step (1/1): 0.72 degree stepper (mechanical),
- Micro Step (1/1~1/250): 0.72~0.00288 degree stepper (When using BMC-H752 AJ 40)
- Control Method: B30219: Open loop control
- Maximum Acceleration Time: B30219:1~1,000 ms
- Maximum Velocity:
- Full step (1/1):50mm/s (25,000pps),
- Micro Step (1/1~1/20):50mm/s (500,000pps)
- Number of Controlled Axes: B30219:2 Axes (Standard Step Driver)
- Communication Interface: B30219: RS-232C
