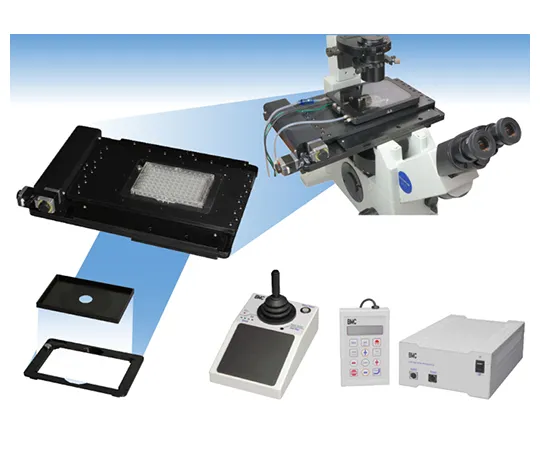

62-4128-20 BIXY Stage STD System (OL) A1 B30102A1
Product Description
Product Model: 62-4128-20Product Brand: CHUO PRECISION […]
Contact Us
Product Details
Product Model: 62-4128-20
Product Brand: CHUO PRECISION INDUSTRIAL Co., Ltd.
Features
- The XY stage of the microscope can be electrified
- The included controller and control unit allow for manual jog movement, step movement that allows a set amount of movement, and teaching movement that allows one set coordinate to be moved one after another.
- The operator can grasp how far the stage has moved by setting the display unit.
- Standard support for K standard holders
- Can be attached to various microscopes by selecting an adapter
Spec
- Materials: B30203: Aluminum Alloy
- Use Environment: 10~40 °C/20~ 80% (non-condensing)
- Input Power Requirements: B30205: 90~240 VAC 50/60Hz
- Electrical power consumption: 57VA
- Compatible Container (Supported Devices): Well Plate, φ35 mm Dish,
- Single Type Slide Glass
- Weight: 8.6 kg
- Direction of travel: B30203: X (A) Y (B) axis 2 direction
- Travel Range: B30203: X-Axis ±55 mm, Y-Axis ±37.5 mm
- Resolution Minimum Step Size (Resolution): B30203:
- Full step (1/1): 2 μm (mechanical),
- Half Step (1/2): 1 μm (When BMC-M752 is Used)
- Repeatability: B30203:2 μm*1
- Leadscrew Pitch: B30203:1 mm
- Motor Type (Motor Tyoe): B30203:5 Phase Stepping Motor (0.75 A/Phase)
- Full step (1/1): 0.72 degree stepper (mechanical),
- Half Step (1/2): 0.36 degree stepper (when BMC-M752 is ***d)
- Control Method: B30205: Open loop control
- Maximum Acceleration Time: B30205:1~1,000 ms
- Maximum Velocity:
- Full step (1/1):30mm/s (15,000pps),
- Half Step (1/2):30mm/s (30,000pps)
- Number of Controlled Axes: B30205:2 Axes (Standard Step Driver)
- Communication Interface: B30205: RS-232C
