62-2978-10 Do valve temperature sensor set DOV-25BT-TS
Analyzer, Testing Equipment

62-2978-10 Do valve temperature sensor set DOV-25BT-TS

model: 62-2978-10
brand: T&D Corporation

Product Description

Product Model: 62-2978-10Product Brand: T&D Corpora […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 62-2978-10
Product Brand: T&D Corporation

Features

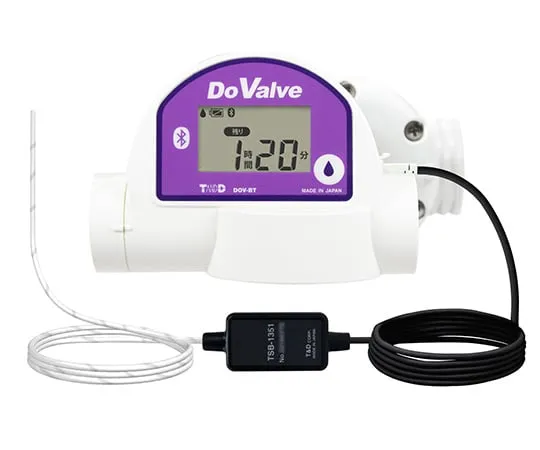

  • This product comes with a timer valve (DOV-25BT) equipped with Bluetooth/wireless LAN function and a dedicated temperature sensor (TSB-1351).
  • In addition to setting the day of the week, time and time of day, the timer allows intermittent watering, in which the valve repeatedly opens and closes at specified intervals.
  • The *** of a temperature sensor (TSB-1351) allows valve opening and closing to be controlled by temperature conditions.
  • Temperature control condition setting :
  • (1) Timer Open the valve when the temperature of sensor 1 (sensor tip) is above/below the set temperature at the set date and time.
  • (2) Timer Open the valve when the temperature difference between sensor 1 (tip of sensor) and sensor 2 (module) is above/below the set value at the set date and time.

Spec

  • Water flow: 1 -100 L/min
  • Applicable water pressure: 0.1 ~ 0.7 MPa (1 ~ 7 kgf/cm 2)
  • Applicable Aperture: 25 A
  • LCD: Valve condition, next scheduled valve opening, remaining valve opening time, remaining battery level, etc.
  • Number of timers that can be set: Up to 20
  • Settings: Day of week, start time, watering time, watering interval, temperature conditions
  • Communications: Bluetooth 4.1 (Bluetooth lowenergy)/Wireless LAN IEEE 802.11 b/g/n (2.4 GHz only)
  • Power source: Lithium battery
  • Operating environment: 0 ~ 50 degrees Celsius (no freezing or condensation)
  • Size: Valve H 70 x W 106 x D 75 (mm)/Control H 53 x W 120 x D 85 (mm)/Total length of temperature sensor approx. 3.5 m (can be ext***ed up to 9 m with dedicated extension cable TR -3 C 30)
  • Waterproof (Control): Rainproof IP 33
  • Battery life: Approximately 1 year at 10 operations per day and 2 months at 100 operations per day (when the wireless LAN function is off)
  • Accessories: Temperature sensor (TSB -1351), lithium battery (CR 123 A), and complete instruction manual (with warranty)
