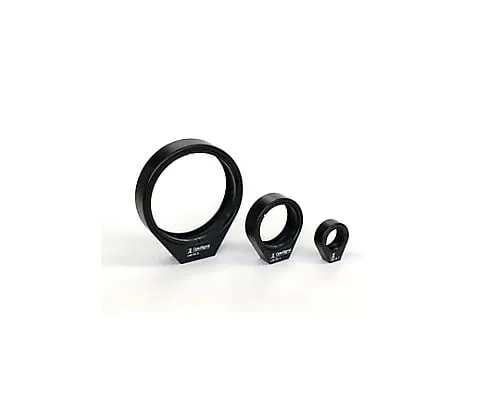

61-6999-25 Thin And Low Profile Lens Holder Effective Diameter Φ11.5mm LHG-12.7
Analyzer, Testing Equipment

61-6999-25 Thin And Low Profile Lens Holder Effective Diameter Φ11.5mm LHG-12.7

model: 61-6999-25
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6999-25Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6999-25
Product Brand: SIGMAKOKI CO., LTD.

Features

  • This lens holder has been thoroughly redesigned to reduce costs.
  • Available in a variety of inches and millimeters with lens outer diameters ranging from φ12.7 mm to φ50.8 mm.
  • Since the screw ring is made of metal, resin powder is not generated.
  • Rod not included.
  • Provide a rod (RO) or post stand (PST).
  • A height adjustment spacer (PS-SP) is available for *** with the post stand (PST) to adjust the optical axis height to inch dimensions.
  • * Resin ring is not included.
  • * When fixing a lens of a material that is easily damaged, *** a resin ring (DR) between the element and a metal screw ring.

Spec

  • [ common specification]
  • Main material: Aluminum
  • Surface treatment: Black anodic oxide
  • [Individual specification]
  • Compatible optics size: φ12.7mm
  • Compatible optics thickness: 2 - 5.4mm
  • Effective diameter: φ11.5mm
  • Screw diameter: M13.55 P0.75
  • Optical axis height: 12.7mm
  • Mass: 0.0032kg
  • RoHS conform product
