Features

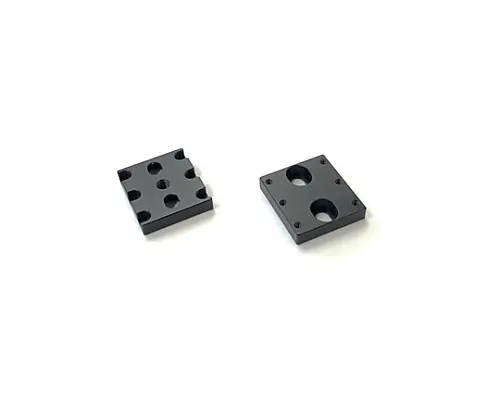

• This is a connection plate for fixing two small holders to the base.
• A combination of a prism holder (PAD) and a polarizer holder (MPH) can be ***d as a polarizing module.
• Two holders with M4 mounting screw holes can be fixed close to each other.
• The ADP-MPH-PAD-1 can be mounted on a post stand, □ 25 mm stage, or ADP-MPH-PAD-2.
• The ADP-MPH-PAD-3 can be attached to the post stand and the ADP-MPH-PAD-4.
• ADP-MPH-PAD-2 and ADP-MPH-PAD-4 can be ***d to change the mounting position of the post or as a 5 mm thick spacer.
• An M2 breadboard (OBB) is also available for securing multiple ADP-MPH-PAD-1 s.
• A spacer (MSP-25, SP-25T) is also available to adjust the optical axis height of the ADP-MPH-PAD-1.
• * The ADP-MPH-PAD-3 can be fastened to 4 positions of □ 32 mm with M2 screws, but cannot be fixed to the □ 40 mm stage (4-M3 □ 32 mm).
• * Use in combination with ADP-MPH-PAD-4.
