Features

• A stainless steel mirror holder optimized for φ12.7 mm dichroic mirrors and beam splitters.
• Since there is no adjustment knob, it can be ***d as a built-in optical device.
• High-resolution adjustment screw (P=0.10 mm) is adopted, so even if it becomes compact, precise adjustment is possible.
• Despite the kinematic holder, there is a transparent hole in the support plate to accommodate the cross beam (45 degree reflection from the back surface).

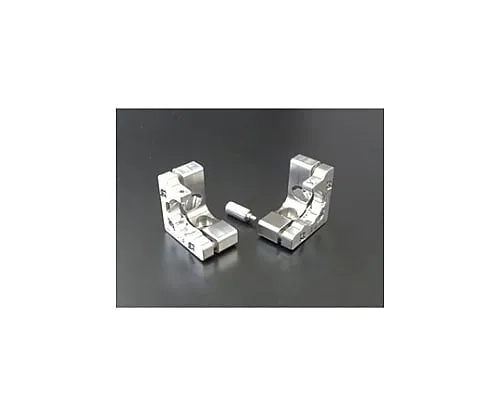

• Two types are available: R type and L type with mirror symmetry.
• Since it is made of stainless steel and has no surface treatment, it can be ***d for UV lasers where outgassing is a problem.
• It can be adjusted with a hexagonal wrench, but a special hexagonal wrench with knob (KCL-1513) is also available.
• A post stand (PST) and a small post stand (SPS) are available for fixing to the fixed plate.
• Use a 1.5 mm wrench to adjust the aoli/rotation.
• * There is one fixed hole.
• * It is not possible to switch between R type and L type in the fixed orientation like other kinematic mirror holders.
• * Beca*** it is made of stainless steel, the surface of the holder has a metallic luster.
• * If the thickness of the element is other than 3 mm, the reflected beam on the back side may be vignified in the transmission hole of the support plate.
• * Hex wrench and hex wrench with knob are not included.
