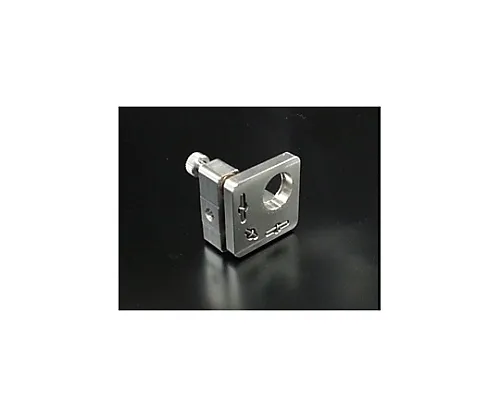

61-6998-98 Fiber Optics Collimator Holder FHG-12.7
Analyzer, Testing Equipment

61-6998-98 Fiber Optics Collimator Holder FHG-12.7

model: 61-6998-98
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6998-98Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6998-98
Product Brand: SIGMAKOKI CO., LTD.

Features

  • This holder fixes the optical fiber collimator housing (FC-12.7 PC/APC) and adjusts the angle of the emitted collimator beam.
  • A small holder suitable for a small housing, which ****s to compact the optical system.
  • It can also be ***d as a φ12.7 mm mirror holder.
  • It is designed to make it easy to attach and detach fiber optic connectors even when miniaturized.
  • Since 0.15 mm fine screws are adopted for adjustment screws, fine adjustment of the angle of the collimated beam with high resolution is possible.
  • A kinematic mirror holder (MHG-MP25 NL) is available for FC-25.4 (PC/APC).
  • * When ***d with an optical bench or rod stand, the center of the optical fiber collimator and the center of mounting (optical axis) of the holder will deviate by 6 mm. For this reason, we recomm*** that you *** a post stand (PST) to secure the holder.

Spec

  • [

    common specification]
  • Main material: Stainless Steel
  • Surface treatment: No
  • [Individual specification]
  • Compatible device size: φ12.7mm
  • Compatible device depth: 4mm
  • Number of adjustment shafts: 2 axes
  • Adjustment range, tilt: ±3°
  • Adjustment range, rotation: ±3°
  • Resolution, tilt: Approximately 0.41°/rotation
  • Resolution, rotation: Approximately 0.41°/rotation
  • Mass: 0.058kg
  • RoHS conform product
