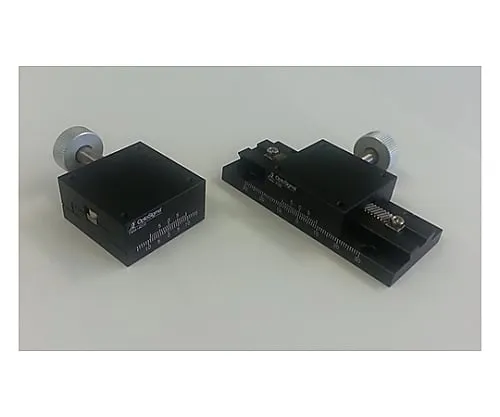

61-6998-90 x Axis Aluminum Rack Pinion Stage Movement Amount ±10mm TARA-4010
Product Description
Product Model: 61-6998-90Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6998-90
Product Brand: SIGMAKOKI CO., LTD.
Features
- A lightweight ant type stage made of aluminum.
- Due to the ant groove guide/rack pinion system, this stage is suitable when the frequency of operation is relatively high and the amount of movement is required quickly.
- TARA-4010 can be combined on the XY axis.
- The load capacity does not differ when ***d vertically (clamped).
- By placing two clamps, you can secure them more firmly.
- * A separate plate is required for the TARA-4025 when it is attached to the XY axis. Please contact us.
Spec
- Table surface size: 40 x 40mm
- Movement amount: ±10mm
- Movement amount/1 rotation: Approx 15mm
- Vernier scale: 0.1mm
- Movement guide: Dovetail method
- Main material: Aluminum
- Surface treatment: Black anodic oxide
- Withstand load: 29.4N (3.0kgf)
- Mass: 01kg
- RoHS conform product
