Analyzer, Testing Equipment

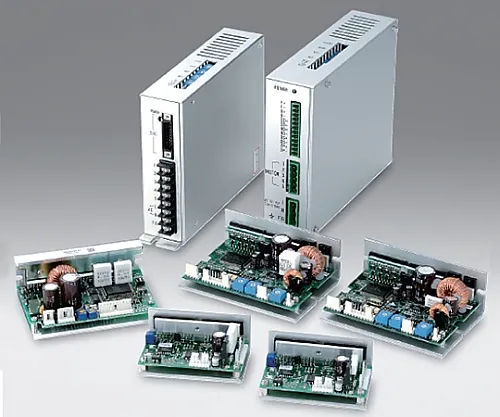

61-6998-76 Small Driver MC-5m MC-5M
Product Description
Product Model: 61-6998-76Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6998-76
Product Brand: SIGMAKOKI CO., LTD.
Features
- Various drivers are also available.
Spec
- Product name: Small driver
- Drive motor: 5 phase stepping motor
- Drive system: Bipolar pentagon constant current drive method
- Drive cuurent: 0.5 - 1.4A/phase
- Exciting method: Full/half step
- Division counts: 2 types (1, 2)
- Input signal: 1 clock input method, 2 clock input method
- Input logic: Photo coupler input
- Maximum response frequency: 50kpps
- Automatic current down OFF input: No
- Motor excitation OFF input: Is available
- Microstep select Input: No
- Origin excitation timing output: No
- Input power: DC20 - 40V 3A Max
- Operating temperature range: 0 - 40℃
- Outer dimensions: W77 x H32 x D45mm
- Mass: 0.1kg
- CE conform product
