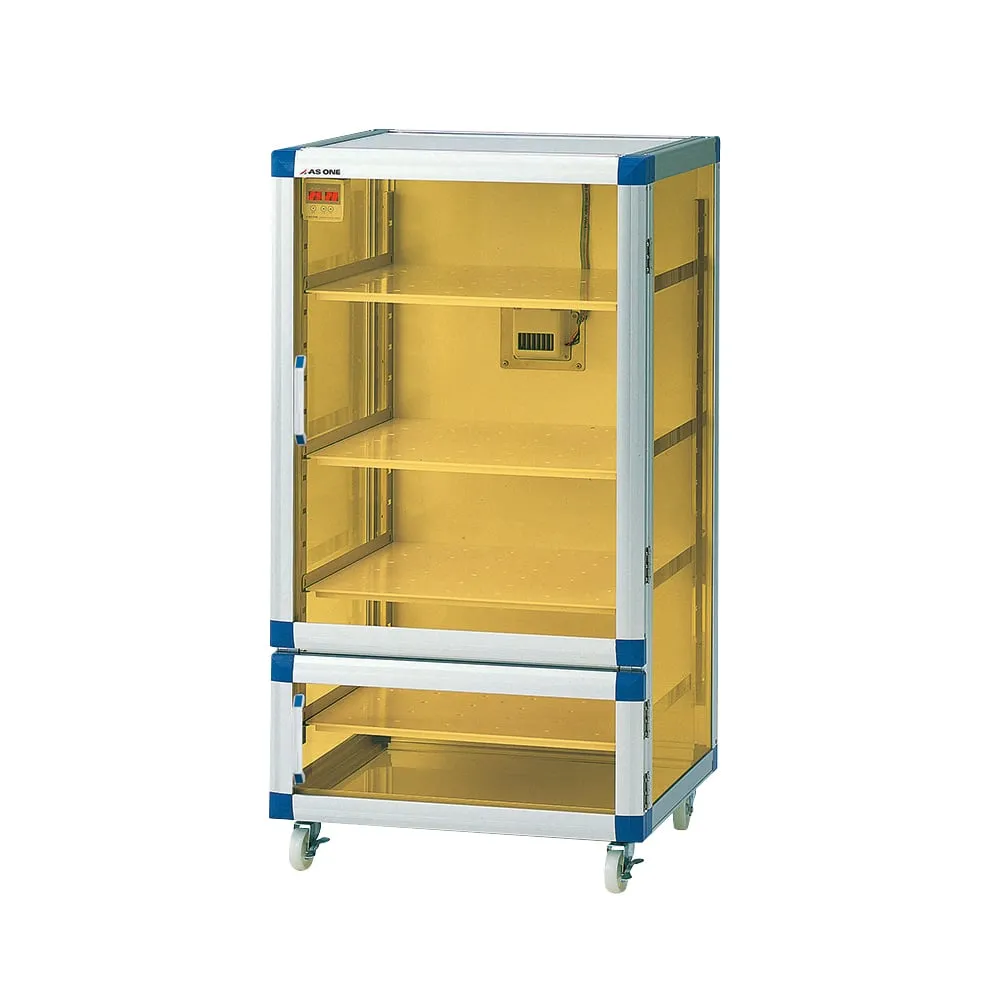

3-6753-01 Frost Dry Desiccator BG (UVC & Antielectricity) 574 x 611 x 1085 Reinforced Plastic Shelf Board U-BG-KPA
Product Description
Product Model: 3-6753-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 3-6753-01
Product Brand: AS ONE Corporation
Features
- For storing electronic components that hate UV rays!
- The standard frosted dry desiccator ***s vinyl chloride panels with UV protection and anti-static features.
- Uses Peltier module with high dehumidification capability.
- It ***s a capacitive humidity sensor for accurate humidity measurement even in low humidity regions.
- Energy-saving design that automatically reduces power consumption near the set humidity and in the low humidity range.
Spec
- Model number: U-BG-KPA
- Outer dimension (mm): 574 x 611 x 1085
- Shelf board material: Reinforced plastic
- Dehumidification system: Cooling dehumidifying by peltier module
- Humidity setting range: 5 - 50％RH
- Humidity control range: Approximately 15%RH to chamber humidity (after 12h, with no internal load, dep***ing on the usage environment)
- De-icing method: De-icing by DC fan blast
- Humidity display precision: ±4％ (20 - 80％RH) , ±6% (other than the left) *at ambient temperature 25℃
- Humidity control system: ON/OFF control by relative humidity digital input
- Humidity sensor: Capacitance type humidity sensor
- Temperature sensor: Band gap temperature sensor
- Operation sound: At normal/about 51dB, At energy conservation/about 41dB
- Power supply: AC100V 50/60Hz
- Power consumption: At normal/90W, At energy conservation/55W
- Material: Body//ultraviolet rays protection antistatic PVC (vinyl chloride resin), aluminum composite board, Frame/aluminum sash
- Caster: Nylon (with stopper)
- Attached shelf board: 4 sheets
- Shelf board mounting pitch: 50mm
- Minimum shelf board spacing: Reinforced plastic/35mm, Stainless steel/40mm
- Shelf board load capacity: Reinforced plastic/about 10kg/sheet, Stainless steel/about 20kg/sheet,
- Body weight: 25kg
*This product might require extra fees.
