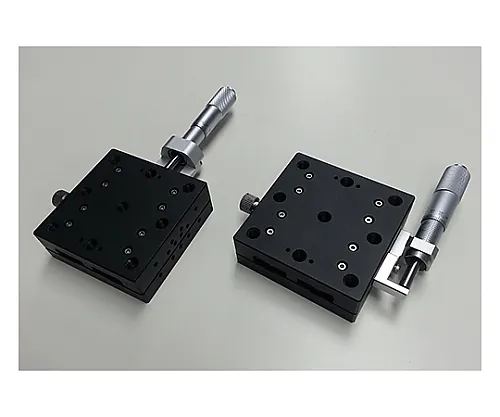

61-6997-77 x Axis Ball Guide Aluminum Stage Size 65 x 65mm 196N(20.0kgf) TADC-651C25-M6
Product Description
Product Model: 61-6997-77Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6997-77
Product Brand: SIGMAKOKI CO., LTD.
Features
- The company has evolved from its own proven high-rigidity integrated guide to a separate type, achieving high rigidity and weight reduction.
- Ideal for position and alignment adjustment, smooth movement can be obtained.
- Since the steel ball moves in contact with the R groove of the guide at four points, it has a stable load capacity in all directions.
- The TADC-SZ series is equipped with a dedicated L-bracket.
- * Dep***ing on the part that secures the micrometer head and the type of micrometer head, it may protrude from the upper surface of the stage.
- * Please **** that dep***ing on the shape of the specimen attached to the stage, it may not be fixed or the amount of movement may not be secured.
Spec
-
[
Common specification]
- Table surface size: 65 x 65mm
- Movement amount: ±12.5mm
- Movement guide: Ball guide
- Main material: Aluminum
- Surface treatment: Black anodic oxide
- Withstand load: 196N(20.0kgf)
- Movement accuracy/straightness: 3μm
- Permissible moment load/pitch: 4.9N・m
- Permissible moment load/roll: 4.9N・m
- Permissible moment load/yaw: 4.9N・m
- Moment rigidity/pitch: 0.3″/N・cm
- Moment rigidity/roll: 0.3″/N・cm
- Parallelism: 30μm
- Movement parallelism: 10μm
- Mass: 0.31kg
- [Individual specification]
- Micro operation position: Center
- Movement amount/1 rotation: 0.5mm
- Micrometer minimum reading: 0.01mm
- RoHS conform product
