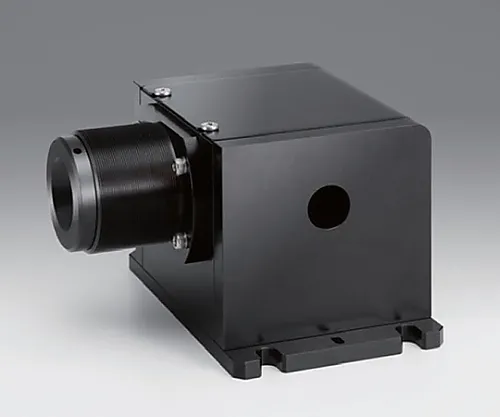

61-6997-65 High Output Shutter Unit Adaptive Wavelength 266Nm SHPS-266
Analyzer, Testing Equipment

61-6997-65 High Output Shutter Unit Adaptive Wavelength 266Nm SHPS-266

model: 61-6997-65
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6997-65Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6997-65
Product Brand: SIGMAKOKI CO., LTD.

Features

  • It is an electromagnetic shutter compatible with high-energy pulsed laser that switches the optical path using a high-power laser mirror.
  • The wavelength of the constant wave of the YAG laser can be selected.
  • It can be ***d as an external shutter ***d in experiments where stable lasing is required.
  • If the power goes down or the wiring is cut, the laser light is cut off, so it is safe.
  • When the shutter is shut off, the laser beam is safely terminated by the beam diff***r.
  • Also purchase a dedicated shutter controller (SSH-C2B).
  • * A dedicated cable (SSH-CA2-LOAA) is not included. Please purchase the cable along with the controller.
  • * Before purchasing, make sure that the energy density of the laser does not exceed the laser capacity.
  • * Do not *** the shutter unit with anything other than a dedicated controller.
  • The shutter may not operate properly.
  • The diff***r may make a tapping sound while the shutter is closed.
  • * This is due to the shock wave generated when the laser light changes to heat on the metal surface, and is not the sound of the mirror in the shutter unit being damaged.
  • * When using a high power laser, the beam diff***r section may become hot.
  • * Be careful not to burn yourself.

Spec

  • [

    common specification]
  • Major material: Aluminum
  • Surface treatment: Black anodic oxide
  • [Individual specification]
  • Adaptive wavelength: 266nm
  • Effective diameter: φ8mm
  • Laser durability (reference value): 5J/cm2
  • Correspondence output: <20W
  • Shutter open/close speed: Approximately 200ms
  • Mass: Approx 0.8kg
