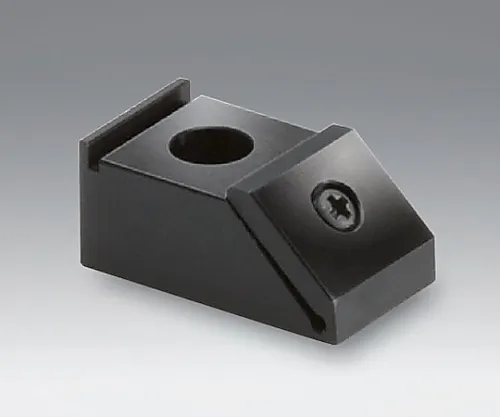

61-6997-61 Compact Prism Holder Adaptive Element Size 10mm PAD-10
Product Description
Product Model: 61-6997-61Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6997-61
Product Brand: SIGMAKOKI CO., LTD.
Features
- Holder for fixing cube beam splitter.
- Since the prism press supports are eliminated and the lower side of the cube is sandwiched with thin claws, the effective diameter can be ***d in all four directions.
- Can be attached to a rod or post stand.
- It can also be attached directly to the base or stage with M4 screws.
- Can be attached to a rod or post stand.
- It can also be attached directly to the base or stage with M4 screws.
- * If you tighten the screws tightly, the glass may break.
- * Tighten the cube with the minimum force that prevents it from moving.
- * For prisms with an external tolerance of ±0.2 mm.
- * If the external tolerance is large, it may not be installed.
Spec
-
[
common specification]
- Major material: Aluminum
- Surface treatment: Black anodic oxide
- [Individual specification]
- Compatible optics size: □10mm
- Mass: 0.005kg
- RoHS conform product
