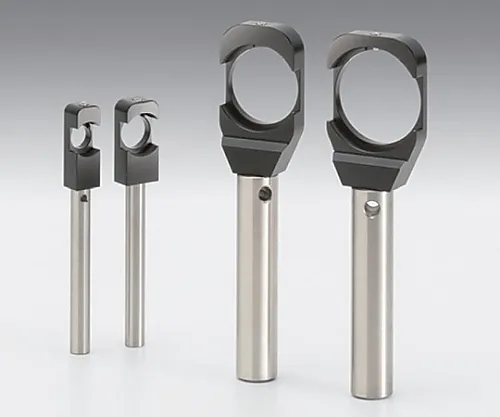

61-6997-53 Mini Fixed Type Lens Holder Compatible Optics Size Φc: Φ10mm Effective Diameter Φd: Φ7mm Tlh-10-Dri TLH-10-DRi
Analyzer, Testing Equipment

61-6997-53 Mini Fixed Type Lens Holder Compatible Optics Size Φc: Φ10mm Effective Diameter Φd: Φ7mm Tlh-10-Dri TLH-10-DRi

model: 61-6997-53
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6997-53Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6997-53
Product Brand: SIGMAKOKI CO., LTD.

Features

  • This is the slimmest lens holder that can hold the lens.
  • The width of the holder is designed to be thinner than the outer diameter of the lens.
  • You can make optical systems using lenses close together in parallel.
  • Push the flat side of the lens against the holder.
  • Since the fixing method is simple, the lens can be easily replaced.
  • It can be fixed even with a plano-convex lens with a thickness of 1 mm.
  • * If the lens holder screws are tightened, the holder will b***.
  • Lightly fix the lens so that it does not move.
  • * The lens may come off if it is transported in a vibrating environment or with the lens on.
  • * Biconvex lenses with a short focal length cannot be fixed.

Spec

  • [

    common specification]
  • Major material: Aluminum
  • Surface treatment: Black anodic oxide
  • [Individual specification]
  • Compatible optics size φC: φ10mm
  • Effective diameter φD: φ7mm
  • Optical axis height: 15mm
  • Compatible optics thickness: 1 - 4mm
  • A: 8.5mm
  • B: 7mm
  • Mass: 0.013kg
  • RoHS conform product
