Features

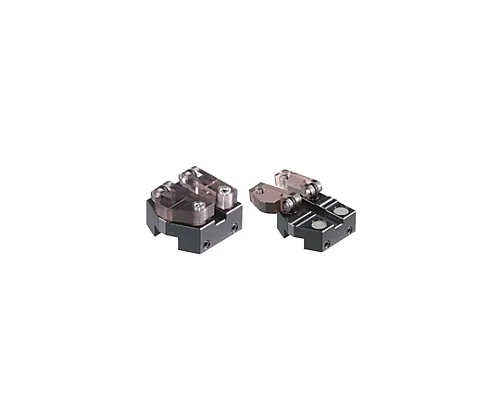

• Holders for fixing bare fiber optics of various jacket diameters (covering diameters).
• When the mounting adapter (MFH-ADP) is replaced, it can be mounted on various stages in addition to the cross movement holder.
• The tip of the optical fiber, which is about 15 mm in length and has been stripped, is fixed with a V-groove and a plastic press.
• Also, the 900 μm jacket next to it is fixed with a V-groove and a resin press to stop the optical fiber from moving.
• The resin presser has built-in magnetizing set bolts, and the magnetic force of the magnet of the fiber holder gently pinches the optical fiber.
• The bottom of the holder has a key groove that can be attached to the keys of various mounting adapters (MFH-ADP) and slid back and forth.
• The holder is securely fastened to the mounting adapter by a set bolt on the side.
• * This holder does not attach to the fiber alignment system (DAU).
• * Please inquire about the holder of the fiber alignment system.
