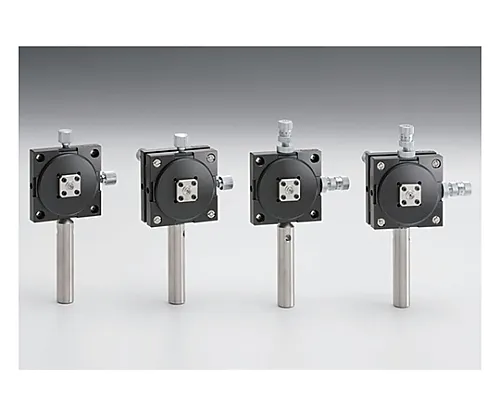

61-6996-33 FC Type Fiber Optics Holder FOP-1
Analyzer, Testing Equipment

61-6996-33 FC Type Fiber Optics Holder FOP-1

model: 61-6996-33
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6996-33Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6996-33
Product Brand: SIGMAKOKI CO., LTD.

Features

  • Cross movement holder for optical fiber machined with FC connector.
  • Use to collimate the light from the fiber.
  • You can choose from two types of screws: one for simple adjustment (FOP) and the other for fine adjustment (FOP-DM).
  • There are FOP-1 with only a cross motion adjustment mechanism and FOP-2 with a fiber tilt adjustment mechanism that can precisely adjust the center of the luminance distribution of the collimated beam.
  • The FC receptacle of the FC type optical fiber holder can be removed and replaced with a receptacle for SMA (FOP-ADP-SMA) or a fiber holder for plain fiber (MFH).
  • Cross-movement holders for SMA connectors (FOP-SMA) and for plain fiber (MFH) are also available.
  • A dummy FC connector is included at the time of delivery. This connector cannot be ***d for fiber optics.
  • * Since the tip of the FC connector is stopped at the butt of the receptacle, it is retracted 1.5 mm deeper than the *** face.
  • * If you want to align the tip of the FC connector with the *** face of the holder, *** the ferrule adapter (FLAD).
  • * If the optical fiber is inserted or removed, the holder adjustment may move.
  • * When the optical fiber is reinserted, the adjustment mechanism of the holder needs to be adjusted again.

Spec

  • [

    common specification]
  • Main material: Aluminum
  • Surface treatment: Black anodic oxide
  • [Individual specification]
  • Adjustment range, up and down, left and right: ±1mm
  • Adjustment range, tilt, rotation: ?
  • Coarse resolution, up and down, left and right: 0.5mm/rotation
  • Fine resolution up and down, left and right: ?
  • Minimum scale reading, up and down, left and right: ?
  • Resolution, tilt, rotation: ?
  • Mass: 0.14kg
  • RoHS conform product
