Features

• Holder for fixing and adjusting ferrule processed optical fiber (fiber before connector is attached).
• Combined with the optical fiber holder adapter (OFH-ADP), the ferrule of φ0.3 mm to φ4 mm can be fixed.
• When you turn the front/back adjustment knob, the tip of the optical fiber moves back and forth and can be combined with the lens for collimating adjustment.

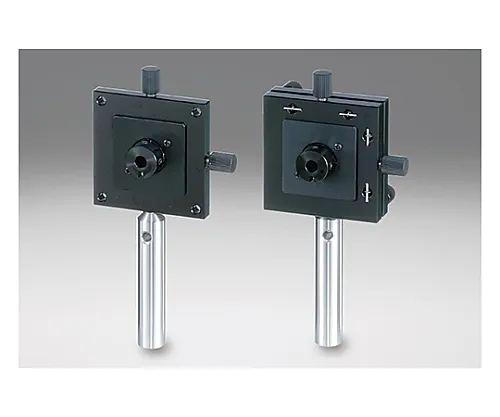

• There are 2 types: one that only adjusts the position of the optical fiber (OFH-1) and one that also adjusts the inclination of the optical fiber (OFH-2).
• In addition, both types of position adjustment can be fine-tuned (DM).
• The fiber optic ferrule is inserted into a hole in the adapter (OFH-ADP), and the fiber optic attached to the adapter is passed through the hole in the fiber optic holder.
• Fasten the two set bolts on the tip of the holder to secure the adapter and optical fiber together.
• Fiber holders for FC connectors (FOP) and SMA connectors (FOP-SMA) are also available.
• * Cannot be ***d for raw optical fiber without ferrule.
• * Use a small optical fiber holder (MFH).
• * The holder is in stock, but the adapter for the optical fiber holder is made to order.
