Analyzer, Testing Equipment
61-6995-83 Sample Holder Table Surface Size: 25mm SHA-25
Product Description
Product Model: 61-6995-83Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6995-83
Product Brand: SIGMAKOKI CO., LTD.
Features

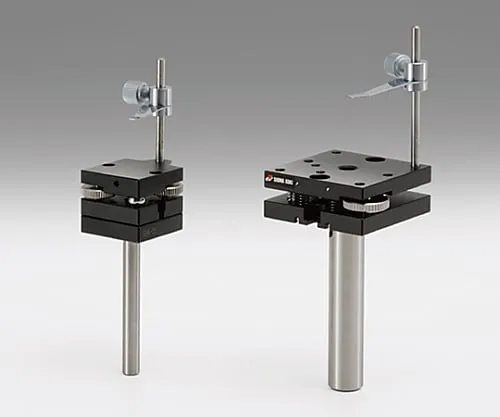

- Holders for fixing samples, prisms and cube beam splitters with irregular shapes.
- Since it has a simple tilt adjustment mechanism, it is convenient for adjusting the optical axis of the sample.
- Since clemmel (leaf spring) is ***d to hold the sample, it can be fixed without loading the sample.
- The height of the clemmel can be varied within the specifications, so that samples of any height can be retained.
- You can also *** the mounting holes on the table surface to screw in the sample.
- (SHA-40, SH-60) A prism holder (KKD) with fine rotation adjustment is also available.
- * If the clemmel post is lifted after adjustment, the prism stand may move and the inclination adjustment may be shifted.
- * Do not touch the post after adjustment.
- * Clemmel (leaf spring) has a low pressurization, so the sample may come off in an environment subject to shock or vibration.
Spec
-
[
common specification]
- Major material: Aluminum
- Surface treatment: Black anodic oxide
- [Individual specification]
- Table surface size: □25mm
- Compatible sample height: 0 - 25mm
- Adjustment range tilt: ±3°
- Mass: 0.05kg
- RoHS conform product
