Analyzer, Testing Equipment

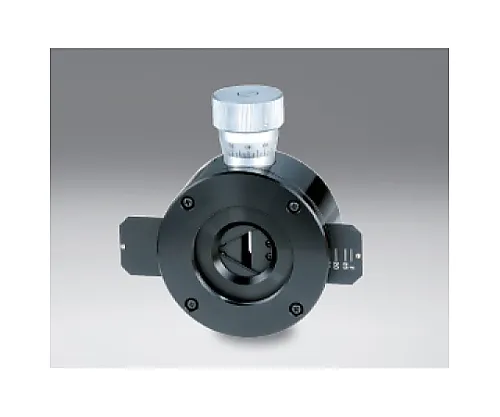

61-6995-77 Double Door Precision Variable Slit PSL-2
Product Description
Product Model: 61-6995-77Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6995-77
Product Brand: SIGMAKOKI CO., LTD.
Features
- A slit that allows two precise blades (sharp blades) to face each other and vary the clearance between the blades.
- Precision type that allows fine adjustment of slit width for spectrometers.
- The slit width adjustment knob switches to fine adjustment when the slit width becomes 1 mm or less, and the slit spacing can be adjusted with a resolution of 5 μm.
- The left and right blades move simultaneously, and the slit width can be changed without changing the slit center position.
- You can adjust the slit length by sliding the slit length variable plate.
- Variable slit (PSL-0) with attached rod is also available.
- * The variable slit PAL-2 cannot be fixed to the base unless a custom-made adapter is ***d.
Spec
-
[
common specification]
- Main material: Aluminum, brass
- Surface treatment: Black anodic oxide, chrome plated
- [Individual specification]
- Blade material: Stainless Steel (no finish)
- Slit width, variable range: 0 - 6mm
- Slit length, variable range: 0 - 24mm
- Slit width, scale minimum reading: 5μm/DIV (1mm or less), 50μm/DIV (1mm or more)
- Mass: 0.93kg
