61-6995-08 Cross Movement Holder TAT-16
Analyzer, Testing Equipment

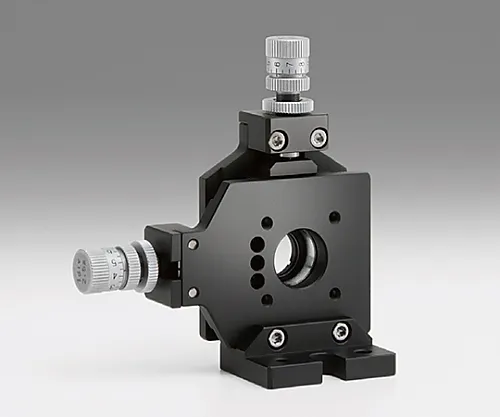

61-6995-08 Cross Movement Holder TAT-16

model: 61-6995-08
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6995-08Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6995-08
Product Brand: SIGMAKOKI CO., LTD.

Features

  • Precision pinhole (PA) and fixed slit (FSL) can be attached to this holder to adjust the position of the pinhole surface.
  • If an objective lens adapter (TAT-18OA) is installed, it can be ***d as an objective lens holder with an adjustment mechanism.
  • The *** of precision ball guides enables smooth movement and fine positioning.
  • A micrometer type that can be smoothly adjusted (TAT-16, TAT-16RO) and a coarse fine micrometer type that can be finely adjusted (TAT-16DM, TAT-16DMRO) are available.
  • A thickness of 16 mm has been achieved by using a 2 axis integrated guide.
  • The reduced thickness allows the lenses to be close in both directions before and after the pinhole.
  • The cross moving holder has a transmission diameter of φ9mm. This transparent diameter can also be ***d to position various devices.
  • A fiber holder (FOP) with an optical fiber receptacle pull (FC connector, SMA connector) is also available.
  • We also have a large transmission diameter cross movement holder (TAT-30) and a simple pinhole holder (AH-1).
  • * Pinhole (PA) is not included in the cross movement holder.
  • * Please purchase the pinhole along with the cross movement holder.
  • * A screw ring for fixing the pinhole is attached to the crosshair holder.
  • * There is no need to provide a pinhole adapter.
  • * TAT-16 and TAT-16DM do not come with rod stand or post stand.
  • * Use TAT-16RO and TAT-16DMRO with rods.

Spec

  • [

    common specification]
  • Major material: Iron
  • Surface treatment: Super black chrome
  • [Individual specification]
  • Pinhole XY adjustment range: ±2mm
  • Coarse resolution: 0.5mm/rotation
  • Fine resolution: -mm/rotation
  • Scale minimum reading: 0.01mm/DIV
  • Mass: 0.26kg
  • Compatible holder: ?
  • Compatible objective lens: ?
  • RoHS conform product
