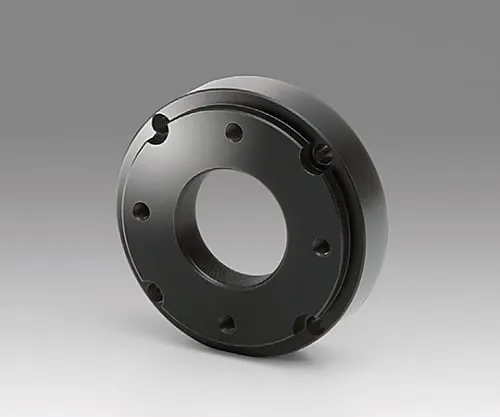

61-6994-82 Laser Beam Expander Adapter LBE-ADP
Product Description
Product Model: 61-6994-82Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6994-82
Product Brand: SIGMAKOKI CO., LTD.
Features
- Adapter for fixing the laser beam expander to a 5-axis lens holder (ALHN-50-5RO) with a centering mechanism.
- Can be ***d with all BE/LBED/LBE beam expanders.
- Other than the 5 axis lens holder, it can be attached to various mirror holders that can fix elements of φ50.
- If you attach the rod directly to the adapter, it can be ***d as a fixed beam expander holder.
- The adapter can also be fixed to the mirror holder (MHG-MP50 NL) or the cross-motion holder (TAT-16RO).
- Refer to the 5 axis lens holder (ALHN-50-5RO) for detailed specifications of the centering mechanism.
- An adapter that is fixed to the He-Ne laser light source is provided as an accessory to the beam expander (BE, LBED).
- See Laser Beam Expander for details.
- * When attaching the beam expander to the 5 axis lens holder (ALHN-5RO), secure it so that the beam expander is attached to the side opposite to the screw ring.
- * Does not attach in the opposite direction.
- * When the beam expander is fixed to the movable holder other than the 5-axis lens holder, the movable mechanism of the holder may not work properly dep***ing on the combination.
Spec
-
[
common specification]
- Major material: Aluminum
- Surface treatment: Black anodic oxide
- RoHS conform product
