Analyzer, Testing Equipment
61-6994-32 Filter Holder Adapter Adaptive Element Size Φ10 - Φ20mm FH-10
Product Description
Product Model: 61-6994-32Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6994-32
Product Brand: SIGMAKOKI CO., LTD.
Features

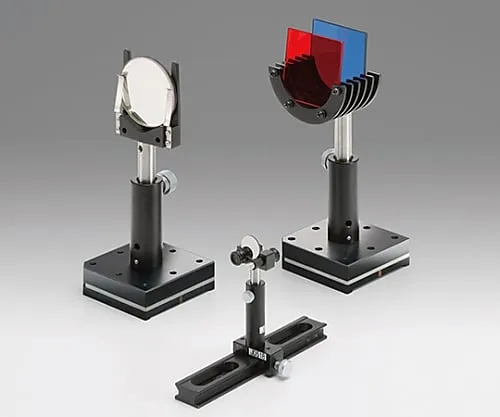

- Holder for optical elements such as ND filters and color filters that need to be removed frequently during optical experiments.
- Filters with different thickness can be easily replaced.
- The small filter holder (FH-10) holds the filter between the body and the knob.
- Fix the holder, pull the knob to create a gap between the body and knob, and insert the filter into the gap.
- When the knob is released, the knob returns with a spring, and the filter is caught between the body and the knob.
- If you insert a thin filter into the FH-25 or FH-50, the filter will not be fixed and may rattle.
- By attaching the filter to the adapter (FAD), it can be secured to the filter holder (FH-25, FH-50) without rattling.
- Filter holders can be ***d with both round and square filters (although FH-10 can only be ***d with round filters).
- Since FH-25 and FH-50 can insert multiple filters at the same time, they can be ***d for fine brightness adjustment and transmission wavelength adjustment.
- A framed ND filter (MAN, MFND) with an adapter (FAD) attached to the ND filter of various transmittance is also available.
- * If a thin filter is installed on the FH-25 or FH-50, movement of the filter may ca*** the optical axis of the optical system to shift slightly.
- * For precise experiments, attach the filter to the adapter (FAD).
- * Since the FH-25 and FH-50 rods *** special shaped rods, they cannot be replaced with standard rods (RO -**-**).
Spec
-
[
common specification]
- Major material: Aluminum
- Surface treatment: Black anodic oxide
- [Individual specification]
- Compatible optics size element, outer diameter, length: φ10 - φ20mm
- Thickness: - 3mm
- Number of fixed blades: 2 sheets
- Mass: 0.02kg
- RoHS conform product
