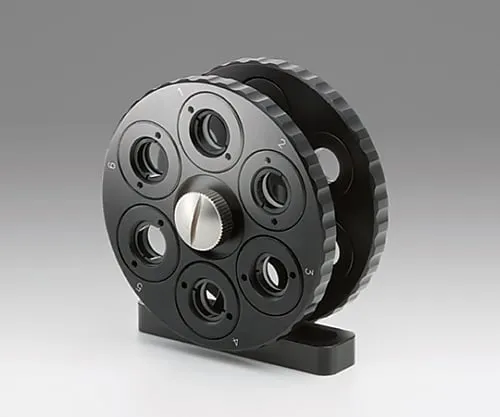

61-6994-24 Dividing Type Filter Holder Adaptive Element Size Φ15mm NDWH-15S
Analyzer, Testing Equipment

61-6994-24 Dividing Type Filter Holder Adaptive Element Size Φ15mm NDWH-15S

model: 61-6994-24
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6994-24Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6994-24
Product Brand: SIGMAKOKI CO., LTD.

Features

  • This holder replaces a filter inserted into the optical axis by attaching multiple filters to the revolver and rotating the revolver.
  • ND filters with different transmittance can be installed to adjust the amount of transmitted light, and color filters can be installed to switch the transmission wavelength.
  • A single type (NDWH-15 S) that can be switched in 6 steps and a double type (NDWH-15 W) that has 2 sets of 6 steps are available.
  • You can choose from two types: fixed (NDWH-15 S/NDWH-15W) and rod type (NDWH-15SRO/NDWH-15WRO).
  • The revolver has an index (where it stops rotating) every 30 degrees.
  • You can *** this index to pin the filter to 0, 30, 60, or 90 degrees.
  • The revolver has an index (where it stops rotating) every 30 degrees.
  • You can *** this index to pin the filter to 0, 30, 60, or 90 degrees.
  • The index filter holder does not contain an ND filter.
  • Select from the ND filter (AND-15 C/FND-15C02).
  • A rotary variable reflection ND filter holder (NDHN) is also available that can continuously change the amount of transmitted light.
  • * If there is a filter at the bottom of the revolver, the holder supports will get in the way and light cannot pass through.
  • * All indexes except this position allow light to pass through.
  • * A special tool is required to remove the filter case.
  • * When removing the filter case and using a φ25.4 mm filter, a screw ring (RR-25.4-5) and a resin ring (DR-25.4-5) are required.
  • * The rod type must be offset from the optical axis.
  • * The amount of offset dep***s on the position of the revolver hole ***d.

Spec

  • [

    common specification]
  • Major material: Aluminum
  • Surface treatment: Black anodic oxide
  • [Individual specification]
  • Compatible optics size: φ15mm
  • Compatible optics maximum thickness: 3mm
  • Max number of mounts: 6 sheets
  • Mass: 0.2kg
  • RoHS conform product
