61-6993-68 Prism Holder Adaptive Element Size To Φ10mm KKD-25PH
Analyzer, Testing Equipment

61-6993-68 Prism Holder Adaptive Element Size To Φ10mm KKD-25PH

model: 61-6993-68
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6993-68Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6993-68
Product Brand: SIGMAKOKI CO., LTD.

Features

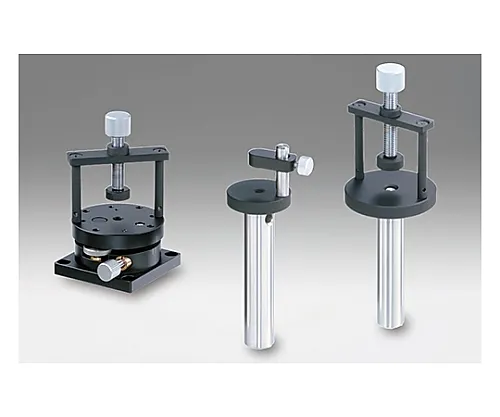

  • Holders for fixing block-shaped optical elements such as cube beam splitters and rectangular prisms.
  • By installing the cube prism so that the supports of the prism presser are diagonal, all four sides of the prism can be ***d.
  • The KKD type has a two-direction tilt and rotation adjustment mechanism, allowing fine adjustment of the reflected beam.
  • As long as the device size is within the specified range, any size can be fixed.
  • Since the knob of the prism presser mechanism and the presser are indep***ent, the prism does not rotate together even if the knob is turned.
  • A θαβ shaft compact thin stage (KKD-C) with prism presser and strut removed is also available.
  • * KKD-25PH and PLH-25 do not apply pressure when pressing the prism, and there is a risk of the element falling off.
  • * Make sure that the prism is fixed before ***.
  • * For the KKD type, if the prism presser is lifted after adjustment, the prism table may move and the adjustment of inclination and rotation may be misaligned.
  • * Do not touch the prism presser after adjustment.

Spec

  • [ common specification]
  • Major material: Aluminum
  • Surface treatment: Black anodic oxide
  • [Individual specification]
  • Compatible optics size: - □10mm
  • Adjustment range (rotation): ±3°
  • Adjustment range (tilt): ±3°
  • Resolution (rotation): Approximately 0.9°/rotation
  • Resolution (tilt): Approximately 2.2°/rotation
  • Mass: 0.05kg
  • RoHS conform product
