61-6993-42 SELFOC(R) Lens Holder MLH-SF
Analyzer, Testing Equipment

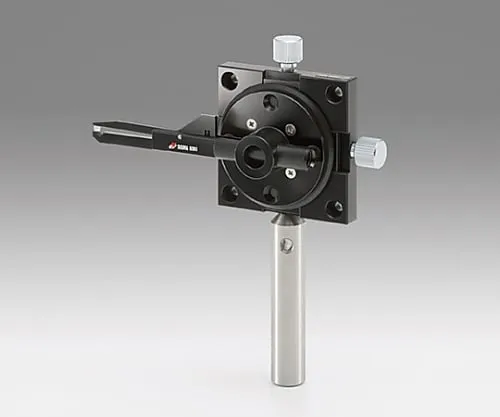

61-6993-42 SELFOC(R) Lens Holder MLH-SF

model: 61-6993-42
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6993-42Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6993-42
Product Brand: SIGMAKOKI CO., LTD.

Features

  • Holder for fixing minute lens of φ3mm or less.
  • The lens and other elements can be fixed to the tip of the elongated arm so that various devices can be placed near the front and back of the lens.
  • It can be ***d for collimating lenses of fiber and semiconductor lasers.
  • Since the arm holds the lens with a light spring force, there is no need to worry about the lens falling off during the work.
  • The device can be easily and securely attached by removing the MLH-SF from the adapter and pinching the device in the horizontal plane from the left and right sides with an arm.
  • The MLH-10ADP-2 is mounted on a □ 40 mm XYZ stage (TSD-405 L) for precise positioning of the device.
  • The MLH-10ADP-2 is attached to a fiber holder (FOP) for position and tilt adjustment.
  • The MLH-SF has M6 screw holes in the buttocks so you can connect the rods. However, the rod (RO) does not attach to the MLH-10ADP.
  • The arm has no steps, so it can be fixed even with a lens with a thickness of 2 mm or more.
  • Selfoc (R) Lens is a registered trademark of Nippon Sheet Glass Corporation.
  • * Beca*** the tip of the arm has a V-shaped notch, the square-shaped element may tilt and attach.
  • * Either fix the device in a position away from the V-shaped groove, or fix the flat upper arm surface in close contact with the device.
  • * The MLH-10ADP-2 is not attached to the cross movement holder (TAT) other than the FOP.
  • * When installing the MLH-10ADP-2 to the FOP, the adapter of the FOP must be removed.

Spec

  • [

    common specification]
  • Main material: Aluminum
  • Surface treatment: Black anodic oxide
  • [Individual specification]
  • Compatible optics size: φ1.5 - φ3mm
  • Mass: 0.02kg
  • RoHS conform product
