61-6993-39 XZ Mechanical Stage TMEN-LHA-60
Analyzer, Testing Equipment

61-6993-39 XZ Mechanical Stage TMEN-LHA-60

model: 61-6993-39
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6993-39Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6993-39
Product Brand: SIGMAKOKI CO., LTD.

Features

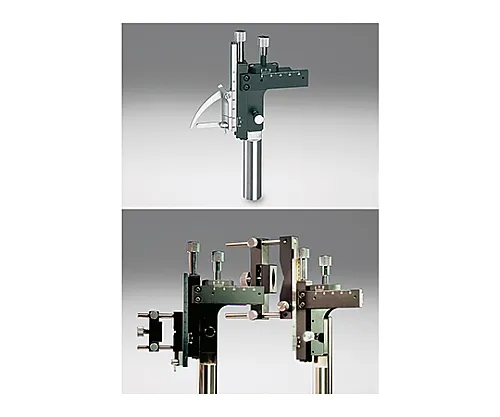

  • Centering holder with clemmel, slide lens holder and iris diaphragm attached to 2-axis ant type stage.
  • * The ant-type stage for lens centering does not have a clamp mechanism.
  • * The stage position may move due to vibration or impact.
  • * If a heavy object is fixed, the stage may desc*** slowly.
  • * Clemmel (TMEN) cannot be held upright.
  • * With the slide lens holder (TMEN-LHA), loosening the lens clamp and the slide clamp can ca*** the lens to fall off.
  • * With the slide lens holder (TMEN-LHA), the distance between the lens and the rod changes when the outer diameter of the lens changes.
  • * Adjust the position of the ant-type stage before ***.
  • * The scale of the iris aperture (TMEN-IH-30) is a rough guide.
  • * There is a big back crash due to the structure of iris aperture.
  • * The diameter and scale of the iris aperture may be out of alignment.
  • * The iris aperture (TMEN-IH-30) has a very delicate structure.
  • * Do not push or pull the wings.

Spec

  • [

    common specification]
  • Main material: Brass
  • Surface treatment: Black coating
  • [Individual specification]
  • Type: Slide lens
  • Compatible optics size: φ10 - 60mm
  • Compatible optics thickness: 1 - 4.7mm
  • Aperture diameter MAX: ?
  • Aperture diameter MIN: ?
  • Vertical direction, adjustment range: 50mm
  • Horizontal direction, adjustment range: 30mm
  • Withstand load: ?
  • Mass: 0.6kg
  • RoHS conform product
