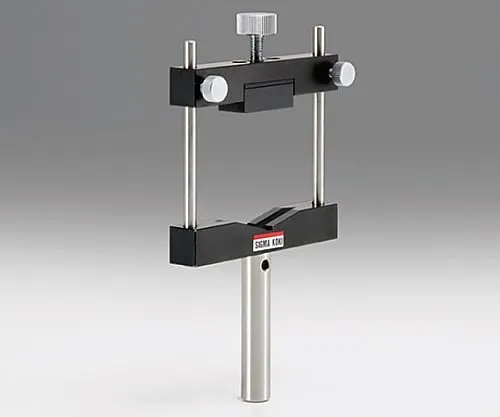

61-6993-25 Sliding Type Lens Holder Adaptive Element Size Φ5 - Φ25.4mm Adaptive Element Thickness 1 - 2.5mm LHA-25
Product Description
Product Model: 61-6993-25Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6993-25
Product Brand: SIGMAKOKI CO., LTD.
Features
- Holders for fixing circular lenses of any outer diameter size.
- It is ***d when there is no lens holder with an outside diameter to be applied or when making an optical system without specifying the lens.
- The lower surface of the holder has a V-groove shape so that cylindrical parts can be fixed in addition to the lens.
- The circular lens is firmly fixed by the underside cut and the lens clamp.
- A coaxial lens holder (SLH) is also provided to keep the optical axis height of the lens constant when fixing the lens.
- * If you turn the lens clamp while the slide clamp is not firmly fixed, the lens will not be fixed.
- * The optical axis height of the lens changes when the lens outer diameter changes.
- * Use a base (rod stand, etc.) with adjustable optical axis height.
Spec
-
[
common specification]
- Major material: Aluminum
- Surface treatment: Black anodic oxide
- [Individual specification]
- Compatible optics size: φ5 - φ25.4mm
- Compatible optics thickness: 1 - 2.5mm
- Mass: 0.1kg
- RoHS conform product
