61-6993-17 Coaxial Lens Holder Adaptive Element Size Φ5 - Φ25.4mm Adaptive Element Thickness 1 - 3mm SLH-25
Analyzer, Testing Equipment

61-6993-17 Coaxial Lens Holder Adaptive Element Size Φ5 - Φ25.4mm Adaptive Element Thickness 1 - 3mm SLH-25

model: 61-6993-17
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6993-17Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6993-17
Product Brand: SIGMAKOKI CO., LTD.

Features

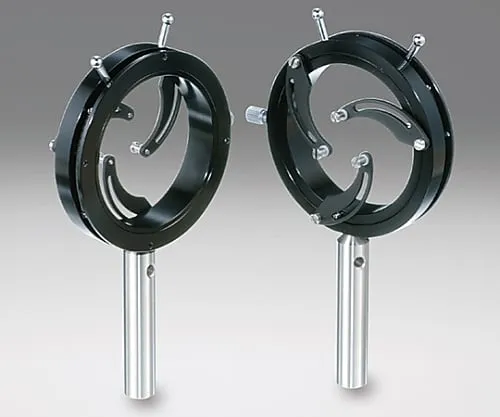

  • This holder holds three lenses of any outer diameter size with nails.
  • The lens core is designed to always be in the same position when the lens is held with three nails.
  • It is a lens type and can be ***d for experiments such as trying out different kinds of lenses.
  • The three claws of the holder touch the side of the lens and the spring pressure holds the lens.
  • By pressing down the distance between the two levers, the three claws open, and when the force is relaxed, the three claws close.
  • The position of the three claws can be fixed by tightening the clamp.
  • * When holding a thin lens, the lens may fall down due to the spring holding force, and the lens may fall out of the holder.
  • * Keep the lens slowly and carefully.
  • * The lens core will slightly shift each time you hold the lens.
  • * For precise measurement, *** a lens holder (ALHN) with a crosshair mechanism.

Spec

  • [

    common specification]
  • Major material: Aluminum
  • Surface treatment: Black anodic oxide
  • [Individual specification]
  • Compatible optics size: φ5 - φ25.4mm
  • Compatible optics thickness: 1 - 3mm
  • Mass: 0.1kg
  • RoHS conform product
