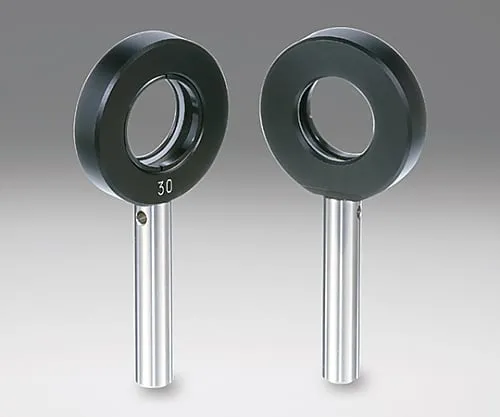

61-6992-03 Fixed Type Lens Holder Adaptive Element Thickness 3 - 6mm Effective Diameter Φb： Φ7mm LHF-10
Product Description
Product Model: 61-6992-03Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6992-03
Product Brand: SIGMAKOKI CO., LTD.
Features
- This lens holder firmly secures the lens ***d in the optical system.
- You can choose the lens size holder you need from a wide range of sizes.
- In addition to a general lens holder, there are A type which can fix a lens with a thickness, and a large type which is ***d for a lens with a large outer diameter of φ80 mm or more.
- A fixed lens holder (LHF-S) with a thin lens frame is also available.
- We also have a compact centering lens holder (LHCM) that allows you to adjust the centering of the lens.
Spec
-
[
common specification]
- Main material: Aluminum
- Surface treatment: Black anodic oxide
- [Individual specification]
- Compatible optics, size φA: φ10mm +0.3/+0.2mm
- Compatible optics, thickness: 3 - 6mm
- Effective diameter φB: φ7mm
- Optical axis height C: 15mm
- D: 4mm
- φE: φ32mm
- F: 12mm
- G: M10.85 P0.75
- φH: φ12mm
- I: M6
- Mass: 0.07kg
- RoHS conform product
